Blower Motor Connector End View

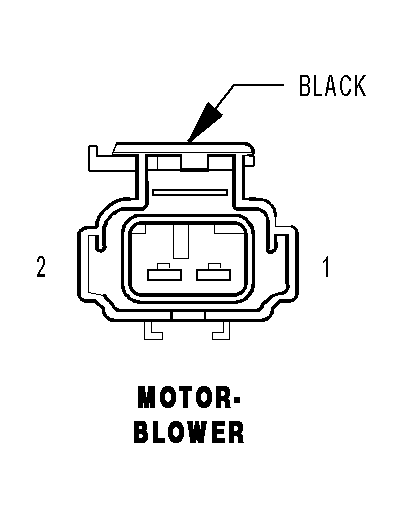

Blower Motor Connector End View
MOTOR-BLOWER - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
C75 12DB/GY
BLOWER MOTOR HIGH DRIVER
2
A111 12DG/RD
BLOWER MOTOR RELAY OUTPUT
Courtesy of DAIMLERCHRYSLER CORP.
