Antenna Module (Export) Connector End View (C1)

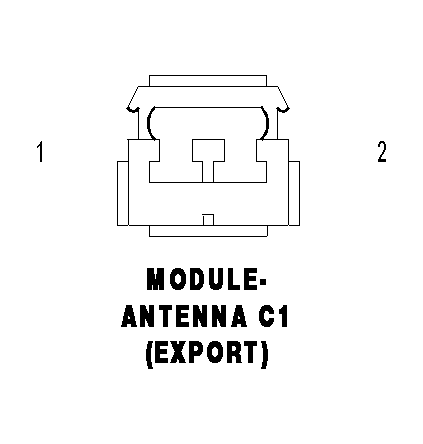

MODULE-ANTENNA C1 (EXPORT) - 2 WAY

GCKJ680012Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 Q39 16RD POWER SUNROOF RELAY OUTPUT
2 - -
