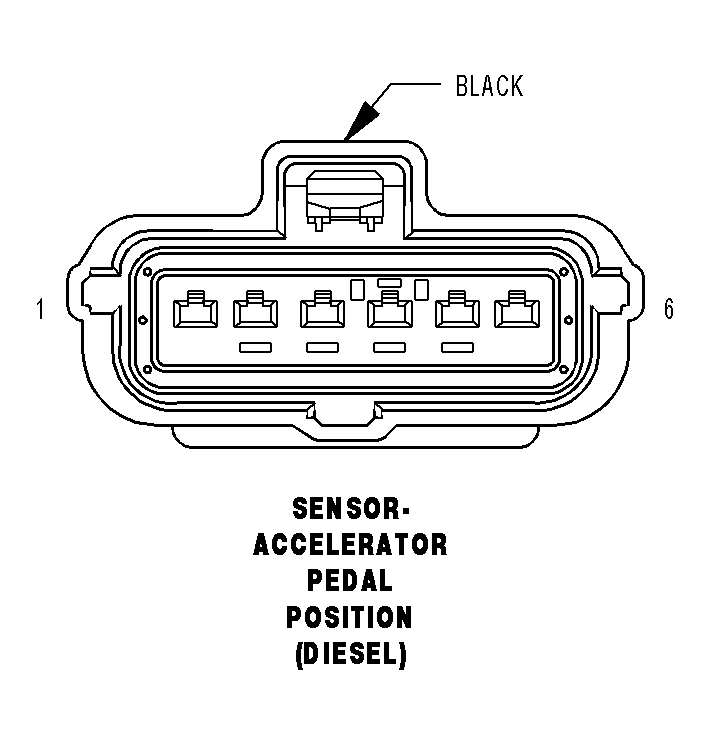

Accelerator Pedal Position Sensor (Diesel) Connector End View
SENSOR-ACCELERATOR PEDAL POSITION (DIESEL) - BLACK 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | K854 20VT/BR | APP SENSOR 2 5 VOLT SUPPLY |
| 2 | K29 20 WT/BR | APP SENSOR 2 SIGNAL |
| 3 | K400 20BR/VT | APP SENSOR 2 GROUND |
| 4 | K167 20BR/YL | APP SENSOR 1 GROUND |
| 5 | K23 20BR/WT | APP SENSOR 1 SIGNAL |
| 6 | K852 20BR/VT | APP SENSOR 1 5 VOLT SUPPLY |
