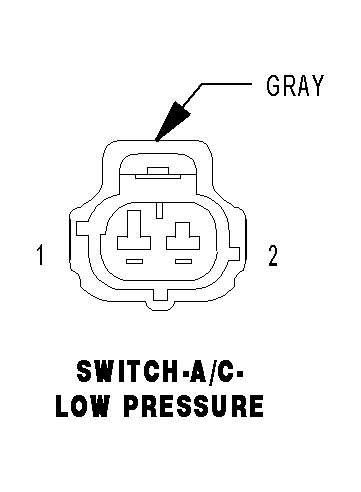

A/C Low Pressure Switch Connector End View

SWITCH-A/C-LOW PRESSURE - GRAY 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	C20 20DB/YL	A/C SWITCH SENSE
2	Z937 20BK (LHD)	GROUND
2	Z932 18BK (RHD)	GROUND
