A/C Compressor Clutch Connector End View

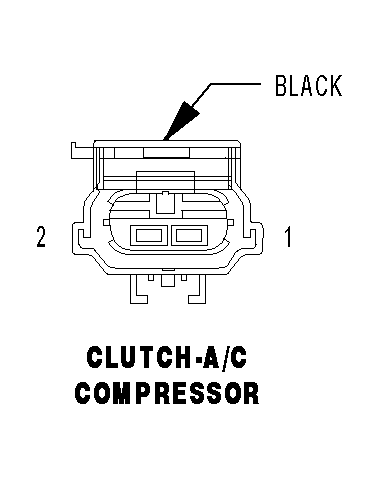

CLUTCH-A/C COMPRESSOR - BLACK 2 WAY

GCKJ680001Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C3 18DB/YL A/C CLUTCH RELAY OUTPUT
2 Z939 18BK GROUND
