Power Mirror Switch: Installation

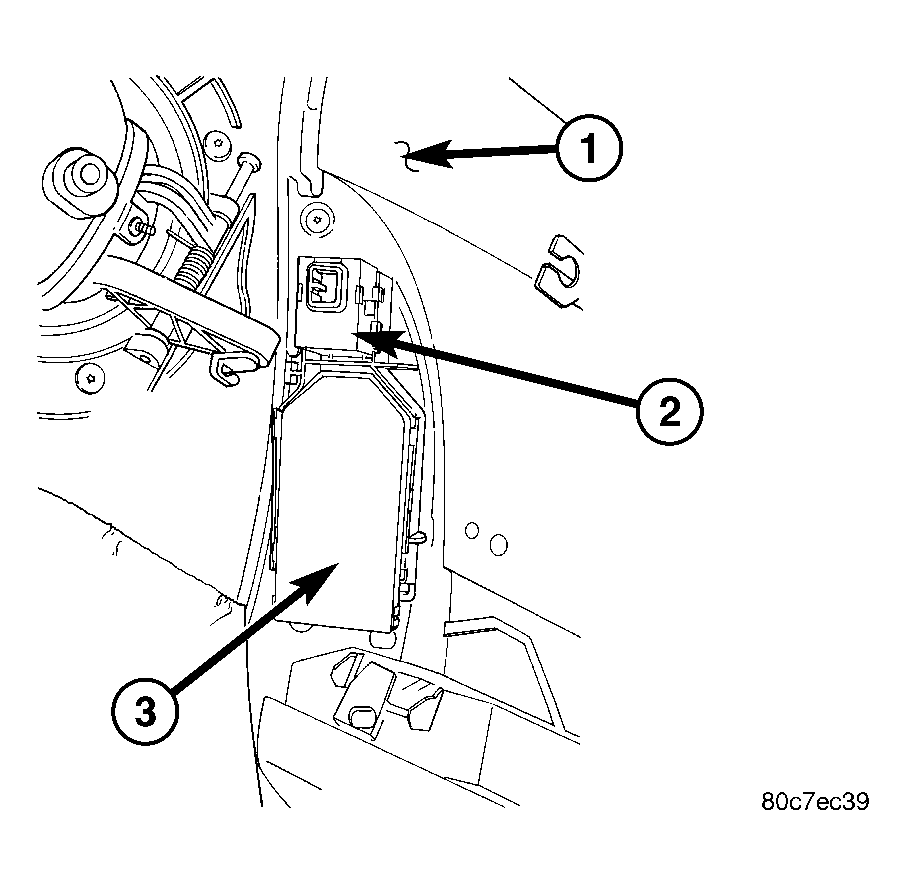

Fig 1: Locating Door Lock/Mirror Switch
GC0026561Courtesy of DAIMLERCHRYSLER CORP.
  1. Install switch to door trim panel (1).
  2. Connect wire harness connector to switch (3).
  3. Install door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - INSTALLATION) .
  4. Connect battery negative cable.
