INA Decoupler

  1. Thread decoupler pulley onto generator shaft by hand (right-hand threads).
  2. Position Special Tool #8823 (VM.1048) into decoupler.

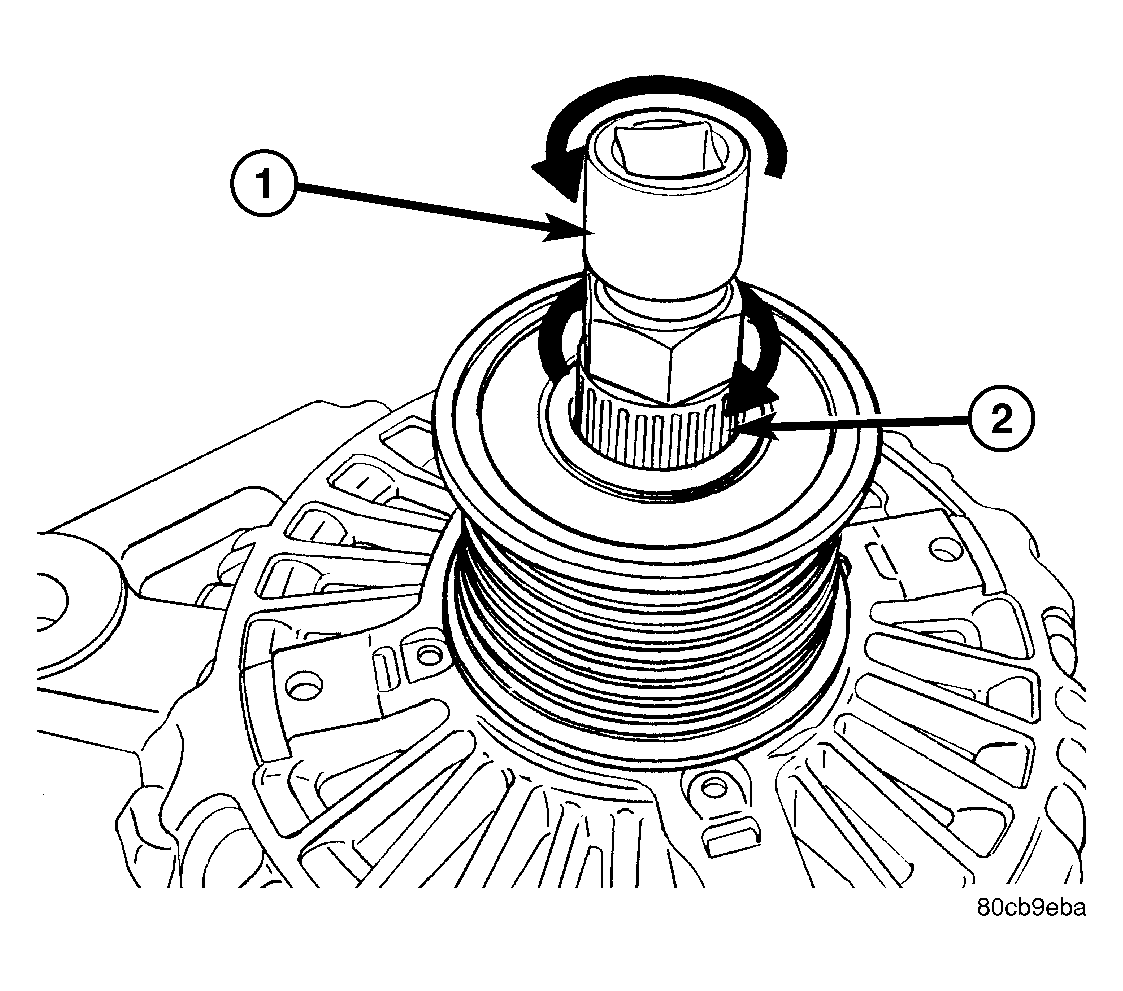

    Fig 1: Decoupler Installation (INA-Hex)
    GC0047327Courtesy of DAIMLERCHRYSLER CORP.
    1 - 10 mm DEEP SOCKET
    2 - TOOL # 8823 (VM.1048)
  3. Determine if end of generator shaft is hex shaped or is splined. If hex is used, insert a 10 mm deep socket (1) into tool #8823 (VM.1048). See Fig 1.

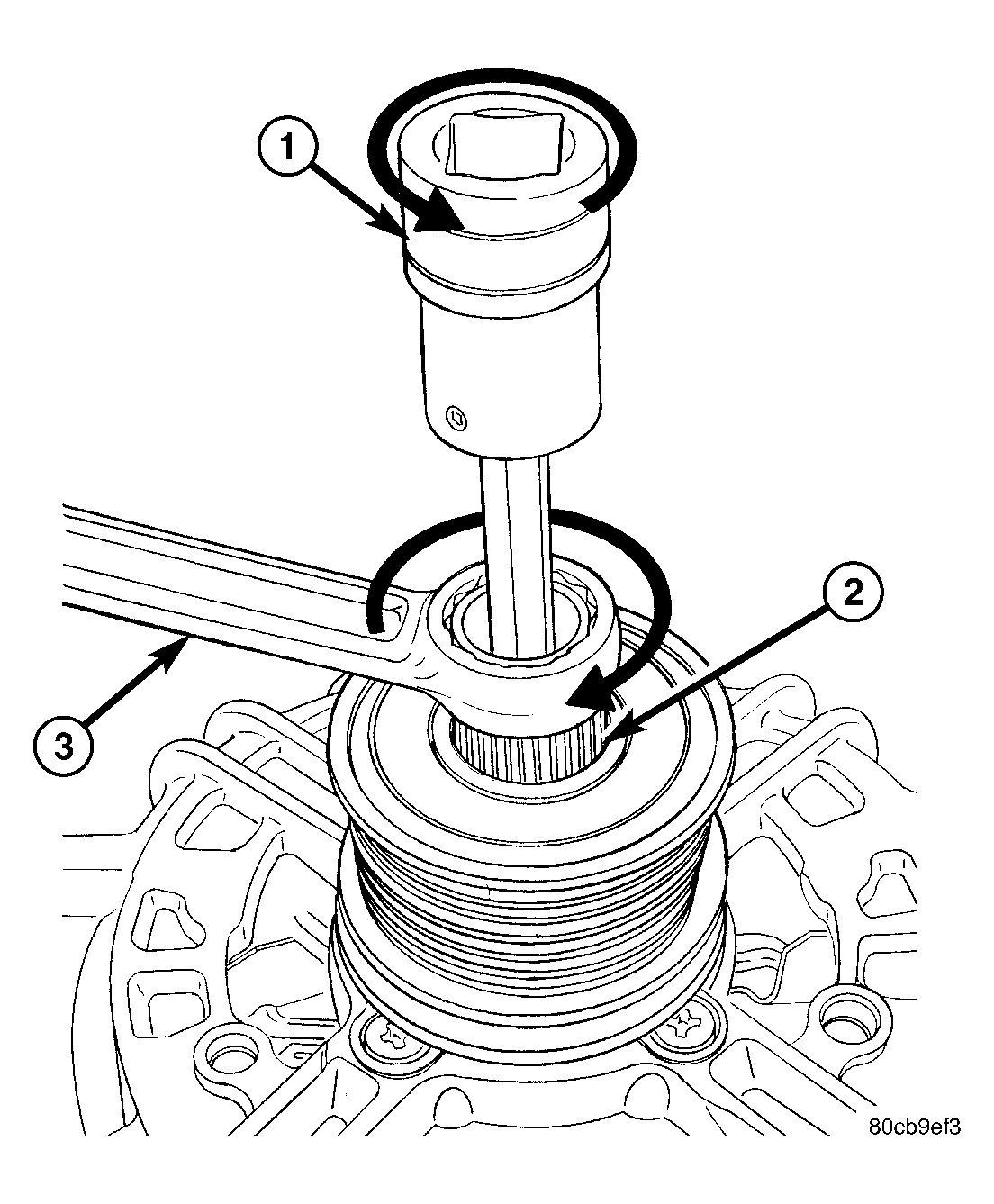

    Fig 2: Decoupler Installation (INA Splined)
    GC0047328Courtesy of DAIMLERCHRYSLER CORP.
    1 - DRIVER
    2 - TOOL # 8823 (VM.1048)
    3 - BACKUP WRENCH
  4. If splined, insert a 5/16" 6-point hex driver (1) or a 10 mm 12-point triple square driver into tool #8823 (VM.1048). See Fig 2.
  5. Do not use an adjustable, ratcheting "click type" torque wrench. Most "click type" wrenches will only allow torque to be applied in a clockwise rotation. Use a dial-type or beam-type wrench.  Tighten in counterclockwise rotation. Torque to 80 N.m (59 ft. lbs.).
  6. Install accessory drive belt and generator. Refer to INSTALLATION .
  7. Connect negative battery cable.
