Export Models

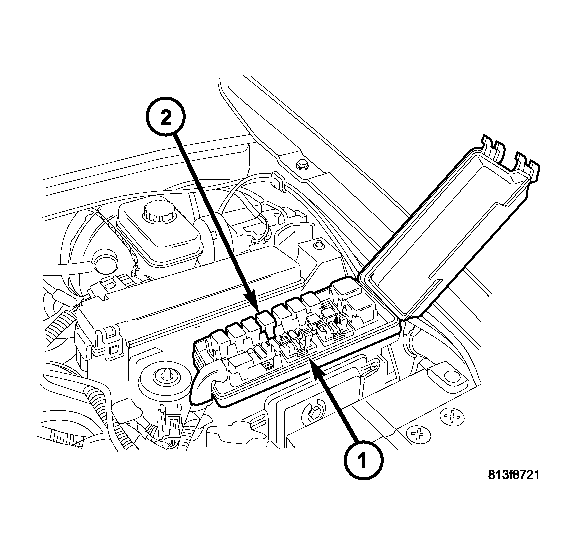

Fig 1: Rear Window Defogger (EBL) Relay - Removing/Installing
GC0047346Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Open the cover of the integrated power module (IPM) (1) located in the engine compartment.
    NOTE: Refer to the fuse and relay layout map on the inside of the IPM cover for EBL relay location.
  3. Remove the EBL relay (2) from the IPM.
