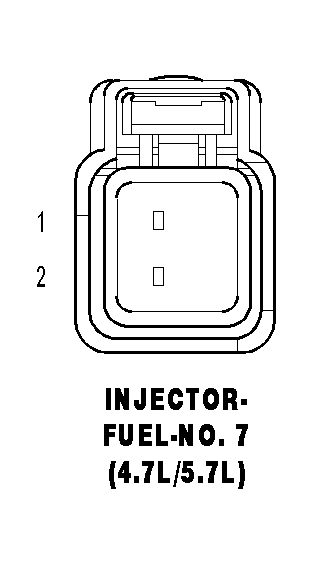

Fuel Injector 7 (4.7L/5.7L) Connector End View

INJECTOR-FUEL-NO. 7 (4.7L/5.7L) - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K26 16BR/YL	INJECTOR CONTROL NO. 7
2	F42 16DG/LG	FUSED ASD RELAY OUTPUT
