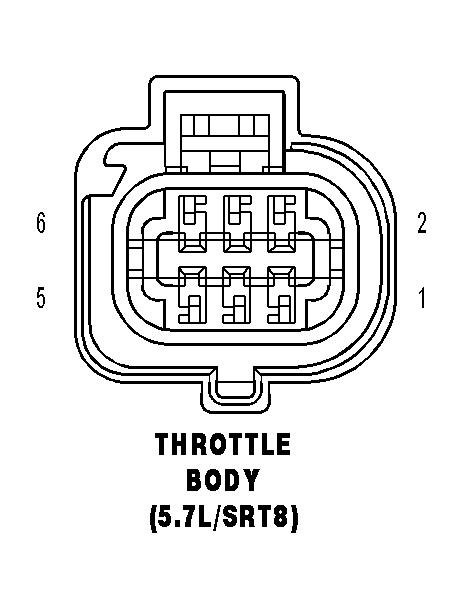

Throttle Body (5.7L/SRT8) Connector End View
WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
THROTTLE BODY (5.7L/SRT8) - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K22 18BR/OR |
TP NO. 1 SIGNAL |
| 2 |
F855 18PK/YL |
5 VOLT SUPPLY |
| 3 |
K124 18DB/GY |
ETC MOTOR (+) |
| 4 |
K122 18BR/DG |
TP NO. 2 SIGNAL |
| 5 |
K126 18DB/LG |
ETC MOTOR (-) |
| 6 |
K922 18BR/DB |
TP SENSOR RETURN |
