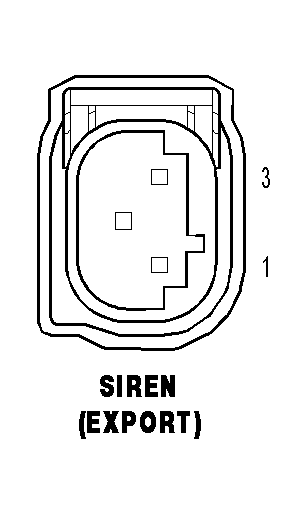

Siren (Export) Connector End View

WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

SIREN (EXPORT) - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A114 18GY/RD	FUSED B(+)
2	Z387 18BK	GROUND
2	Z387 20BK (DIESEL)	GROUND
3	D96 20WT/LB	SIREN SIGNAL CONTROL
