Right Rear Seat Weight Sensor Connector End View

WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

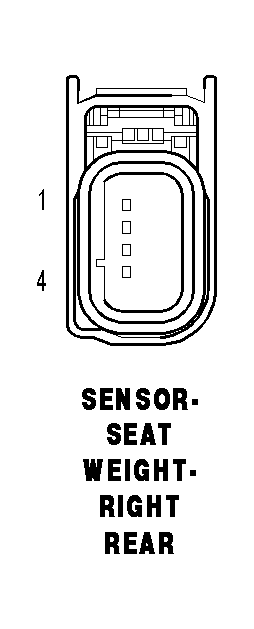

SENSOR-SEAT WEIGHT-RIGHT REAR - 4 WAY

GCWH680391Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 R726 20LG/YL SEAT WEIGHT SENSOR 5 VOLT
2 R728 20LB/YL SEAT WEIGHT SENSOR GROUND
3 - -
4 R706 20LB/OR SEAT WEIGHT RIGHT REAR SENSOR SIGNAL
