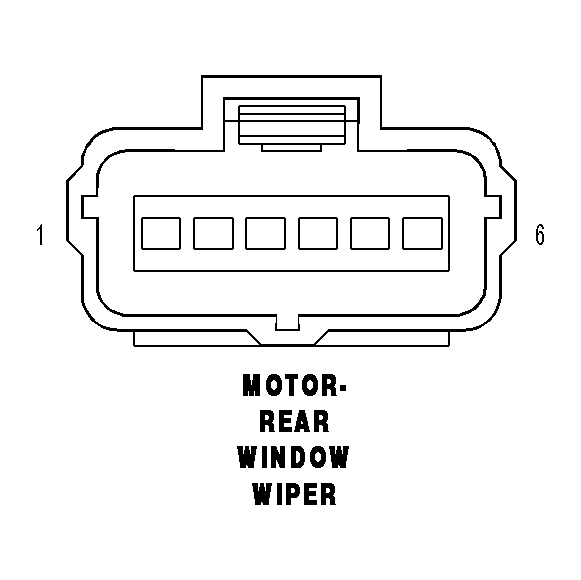

Rear Window Wiper Motor Connector End View
WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
MOTOR-REAR WINDOW WIPER - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z800 16BK |
GROUND |
| 2 |
W13 20BR/LG |
REAR WIPER MOTOR CONTROL |
| 3 |
G80 20VT/BR |
FLIP-UP GLASS AJAR SWITCH SENSE |
| 4 |
W14 20BR/LB |
REAR WIPER MOTOR DELAY SIGNAL |
| 5 |
A46 18RD/GY |
REAR WIPER RELAY OUTPUT |
| 6 |
- |
- |
