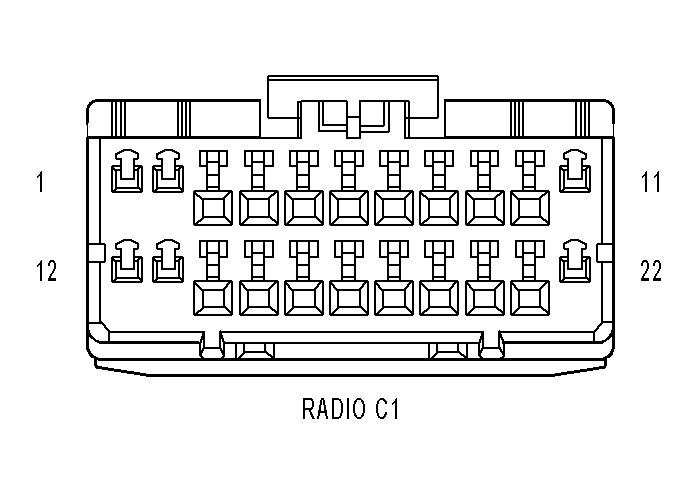

Radio Connector End View (C1)
WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
RADIO C1 - 22 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A118 16RD/OR | FUSED B(+) |
| 2 | - | - |
| 3 | - | - |
| 4 | X703 20DG/OR (HANDS FREE) | LEFT AUDIO OUTPUT |
| 5 | D55 20WT/OR | CAN B BUS (+) |
| 6 | D54 20WT | CAN B BUS (-) |
| 7 | X208 18GY/DG | AMPLIFIED RIGHT I/P SPEAKER (+) |
| 8 | X298 18GY/LG | AMPLIFIED RIGHT I/P SPEAKER (-) |
| 9 | X299 18GY/YL | AMPLIFIED LEFT I/P SPEAKER (-) |
| 10 | X209 18GY/OR | AMPLIFIED LEFT I/P SPEAKER (+) |
| 11 | Z920 16BK | GROUND |
| 12 | A118 16RD/OR | FUSED B(+) |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | X704 20DG/YL (HANDS FREE) | RIGHT AUDIO OUTPUT |
| 17 | X795 20DG (HANDS FREE) | COMMON AUDIO OUTPUT |
| 18 | X51 18DG/DB | LEFT REAR AUDIO (+) |
| 19 | X57 18DG/VT | LEFT REAR AUDIO (-) |
| 20 | X58 18GY/TN | RIGHT REAR AUDIO (-) |
| 21 | X52 18GY/DB | RIGHT REAR AUDIO (+) |
| 22 | Z920 16BK | GROUND |
