Passenger Door Latch Connector End View
WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

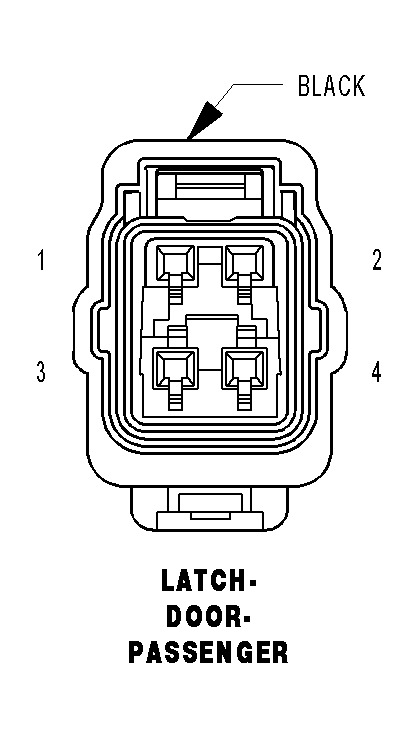

LATCH-DOOR-PASSENGER - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G74 20VT/WT (LHD) |
RIGHT FRONT DOOR AJAR SWITCH SENSE |
| 1 |
G75 20VT (RHD) |
LEFT FRONT DOOR AJAR SWITCH SENSE |
| 2 |
Z908 20BK |
GROUND |
| 3 |
P792 16LG/TN |
PASSENGER DOORS UNLOCK RELAY OUTPUT |
| 4 |
P778 16LG/LB |
DOOR LOCK RELAY OUTPUT |
