Negative Battery (Gas) Connector End View

WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

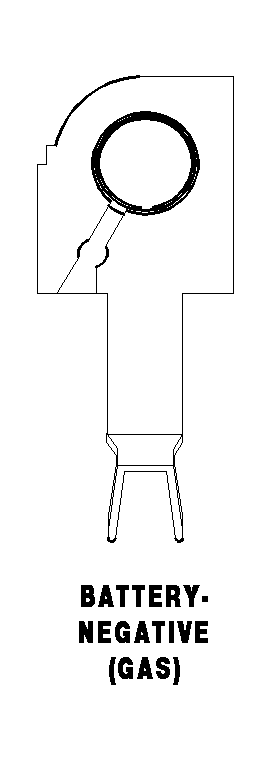

BATTERY-NEGATIVE (GAS) - 1 WAY

GCWH680020Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 Z1 6BK (EXCEPT SRT8) GROUND
1 Z100 6BK/VT (EXCEPT SRT8) GROUND
1 Z1 4BK (SRT8) GROUND
1 Z100 4BK/VT (SRT8) GROUND
