Hydraulic Cooling Fan Module (Diesel/5.7L) Connector End View

WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

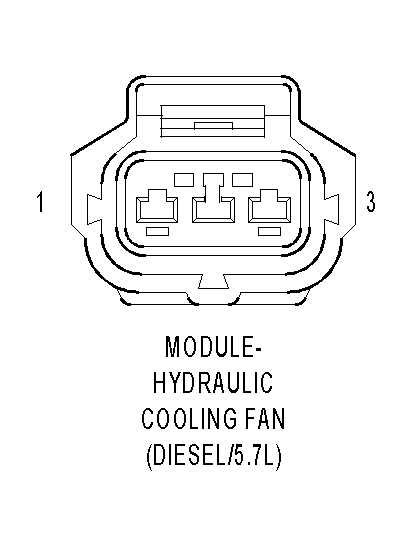

MODULE-HYDRAULIC COOLING FAN (DIESEL/5.7L) - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A916 18RD (DIESEL)	FUSED B(+)
1	A916 16RD/GY (GAS)	FUSED B(+)
2	K173 20BR/VT	HYDRAULIC RADIATOR FAN SOLENOID CONTROL
3	Z823 20BK/DG	GROUND
