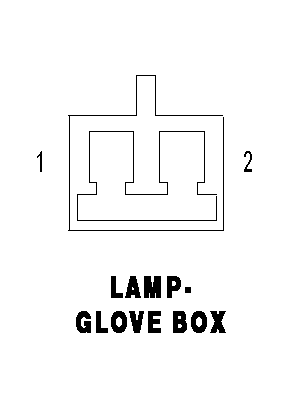

Glove Box Lamp Connector End View

WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

LAMP-GLOVE BOX - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A931 20RD	FUSED B(+)
2	M28 20YL/TN	GLOVE BOX LAMP DRIVER
