Sensor-Crankshaft Position: Removal: 3.7L

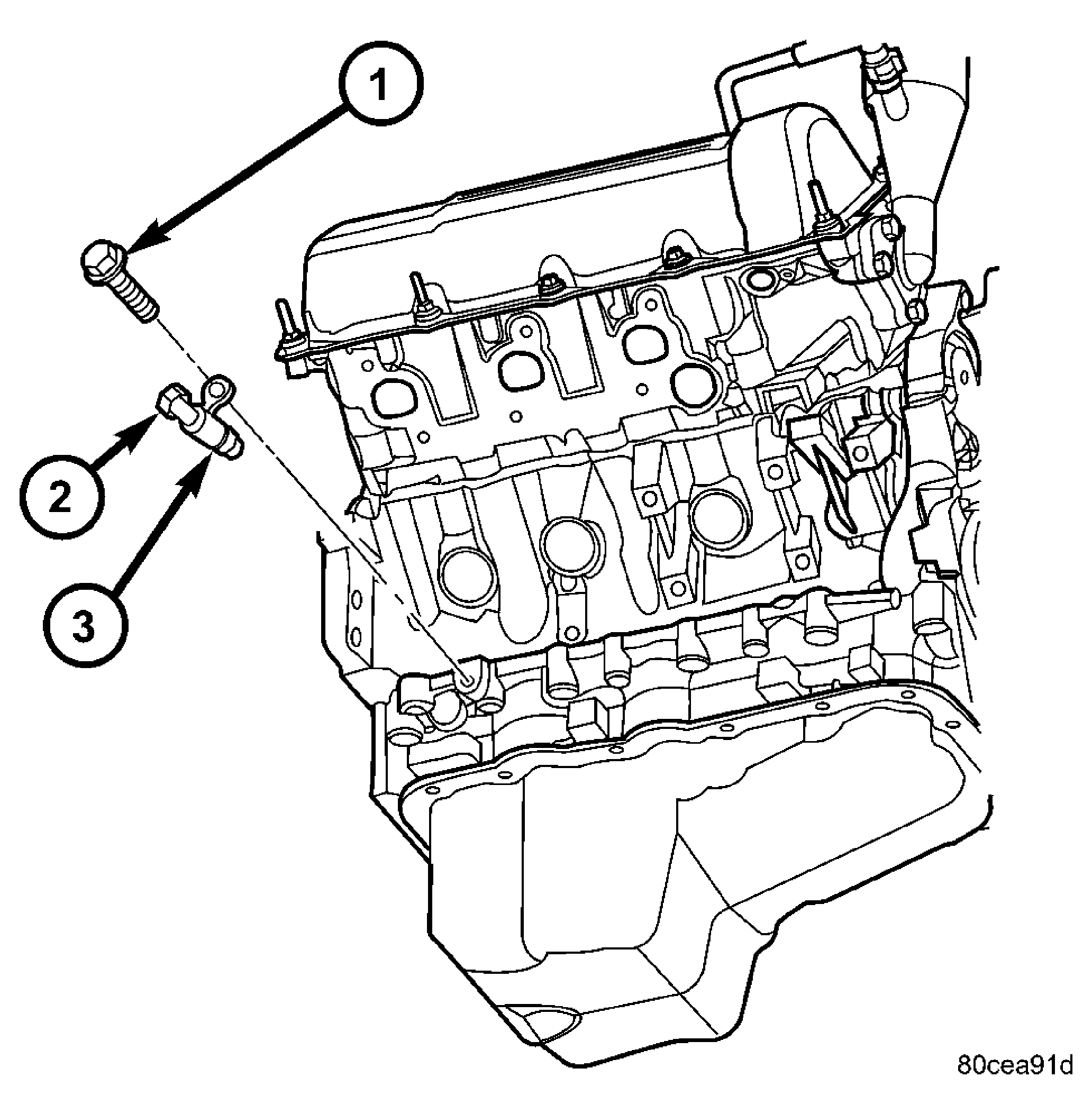

Fig 1: CKP Sensor Removal/Installation - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.

The Crankshaft Position (CKP) sensor (2) is mounted into the right rear side of the cylinder block. It is positioned and bolted into a machined hole.

1. Raise vehicle.
2. Disconnect sensor electrical connector.
3. Remove sensor mounting bolt (1).
4. Carefully twist sensor from cylinder block.
5. Check condition of sensor O-ring (3).
