Installation - Gas Engine
Courtesy of DAIMLERCHRYSLER CORP.
- Clean and inspect the battery tray, (Refer to ELECTRICAL/BATTERY SYSTEM - CLEANING) and (Refer to ELECTRICAL/BATTERY SYSTEM - INSPECTION) .

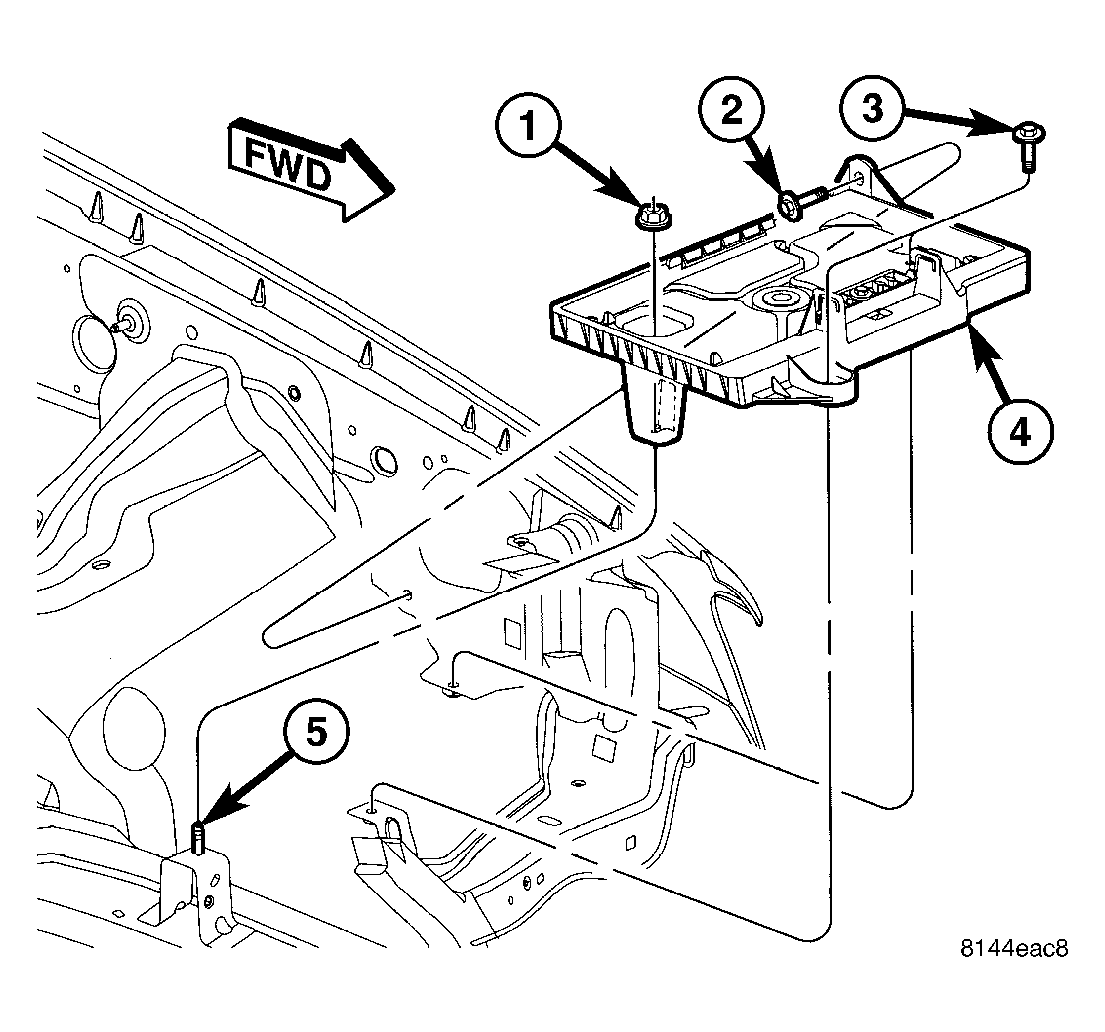

- Position the battery tray and support unit into the right front corner of the engine compartment. Be certain that no hoses or wire harnesses are trapped or pinched by the installation of the tray.
- Install and tighten the one nut (1) that secures the rear of the battery tray to the stud (5) on the front frame rail. Tighten the nut to 7 N.m (65 in. lbs.).
- Install and tighten the one screw (2) that secures the outboard side of the battery tray (4) to the left inner fender. Tighten the screw to 7 N.m (65 in. lbs.).
- Install and tighten the two screws (3) that secures the battery tray (4) to the inner fender and the bracket on the radiator support. Tighten the screw to 7 N.m (65 in. lbs.).
Courtesy of DAIMLERCHRYSLER CORP.

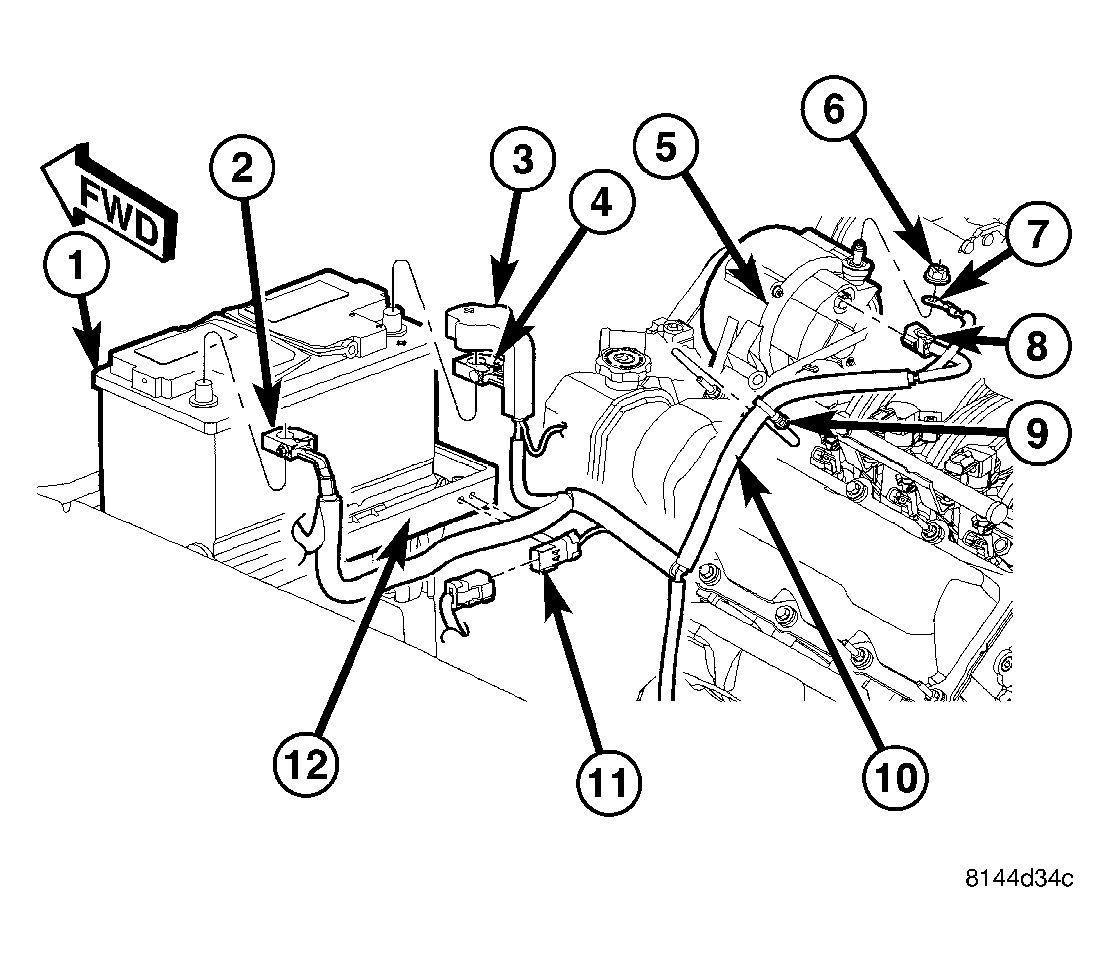

- Install the battery wire harness three pin connector (11) onto the battery tray (12).
- Install the battery onto the battery tray (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - INSTALLATION) .
