K3-Input Clutch: Assembly

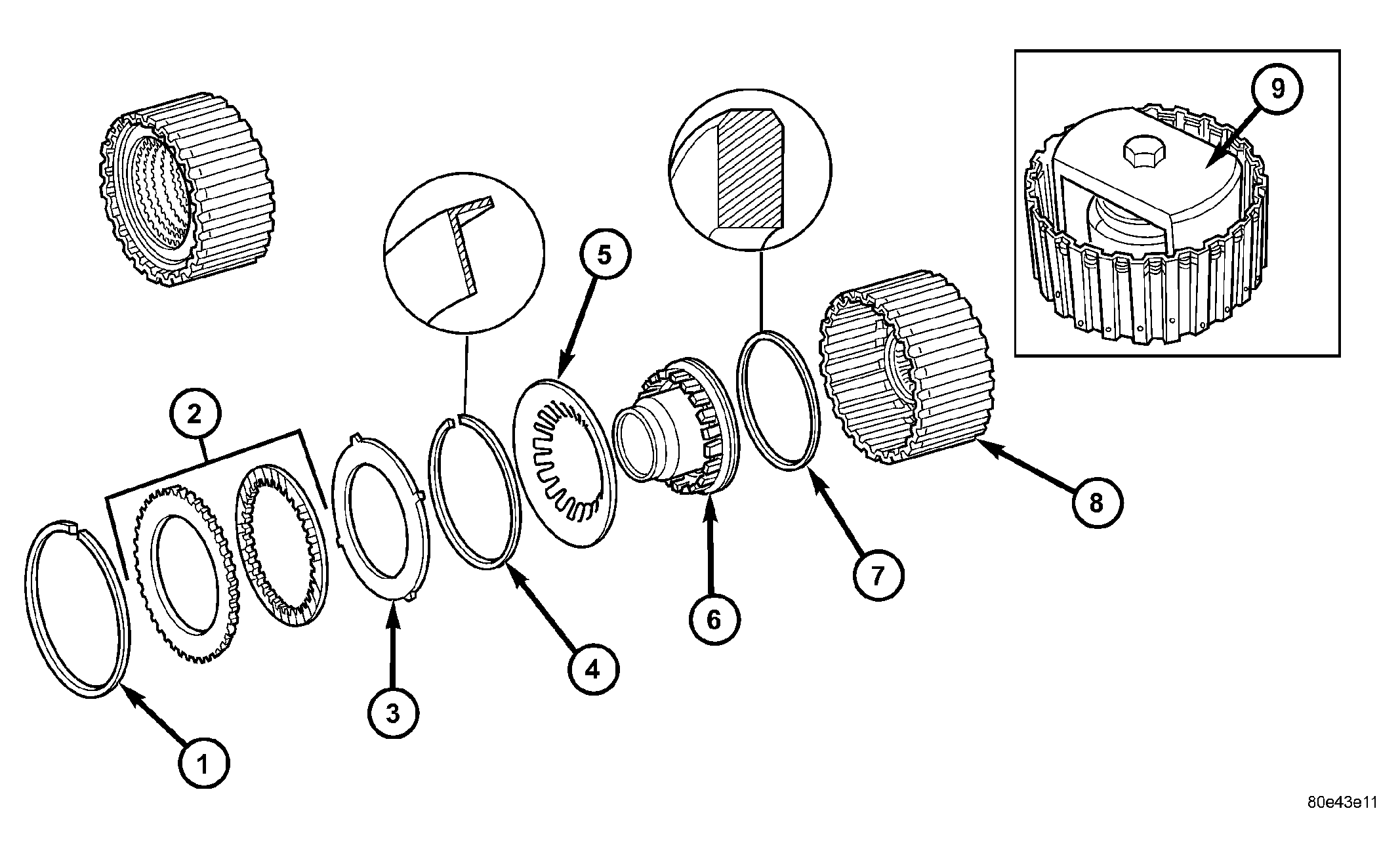

Fig 1: Input Clutch K3 Components

Courtesy of DAIMLERCHRYSLER CORP.

1 - SNAP-RING	6 - PISTON
2 - MULTIPLE DISC PACK	7 - SEALING RING
3 - DISK SPRING	8 - OUTER DISC CARRIER
4 - SNAP-RING	9 - MULTI-USE SPRING COMPRESSOR 8900
5 - SPRING PLATE

Install piston (6) in the outer multiple-disc carrier (8). Check sealing ring (7), replace if necessary. The rounded off edges of the sealing ring must point outwards. See Fig 1.
Insert the spring plate (5). Insert the spring plate with the curvature towards the piston.
Mount the Multi-use Spring Compressor 8900 (9) on the spring plate and clamp until the snap-ring groove is exposed.
Insert snap-ring (4). The collar of the snap-ring must point towards the multiple-disc pack.
CAUTION: When working with double sided friction discs, an externally lugged steel plate is installed first, followed by a friction disc, and continuing on until all the required discs are installed. When working with single sided friction discs, an externally lugged disc is installed first, followed by an internally lugged disc, and continuing on until all the required discs are installed. All single sided discs are installed with the friction side up.

NOTE: Pay attention to the sequence of discs. If the original clutch discs are reused, be sure to return the disc identified on disassembly as belonging on top of the disk spring (3) to its original location.

NOTE: Place new friction multiple-discs in ATF fluid for one hour before installing.
Install disk spring (3) and multiple-disc pack (2) in outer multiple-disc carrier (8).
Insert snap-ring (1).

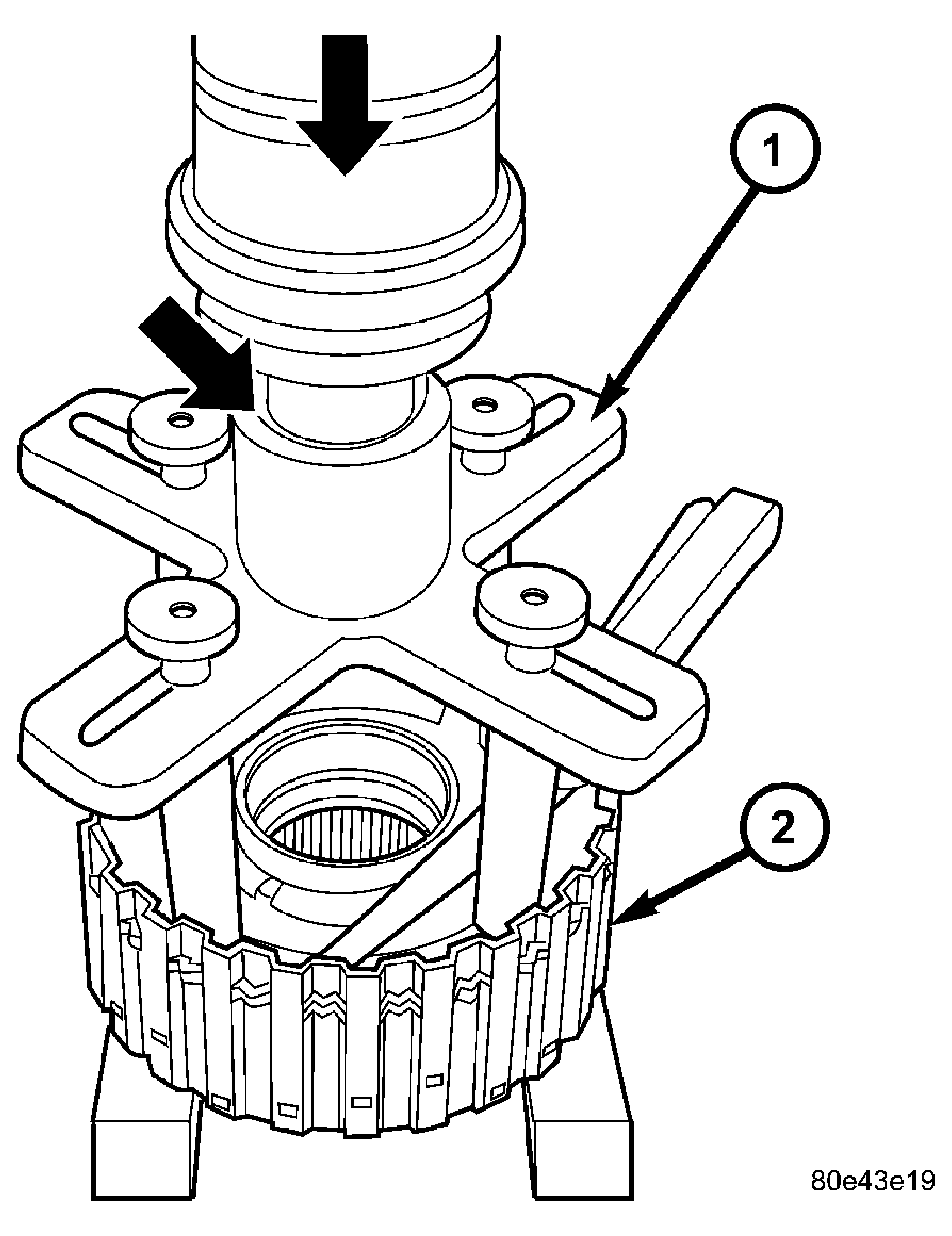

Fig 2: Measure K3 Clutch Clearance
Courtesy of DAIMLERCHRYSLER CORP.

1 - PRESSING TOOL 8901

2 - OUTER DISC CARRIER
Measure the K3 clutch clearance by mounting Pressing Tool 8901 (1) on outer multiple disc. See Fig 2.

Using a lever press, compress pressing tool as far as the marking ring (the marking ring is still visible, see small arrow).

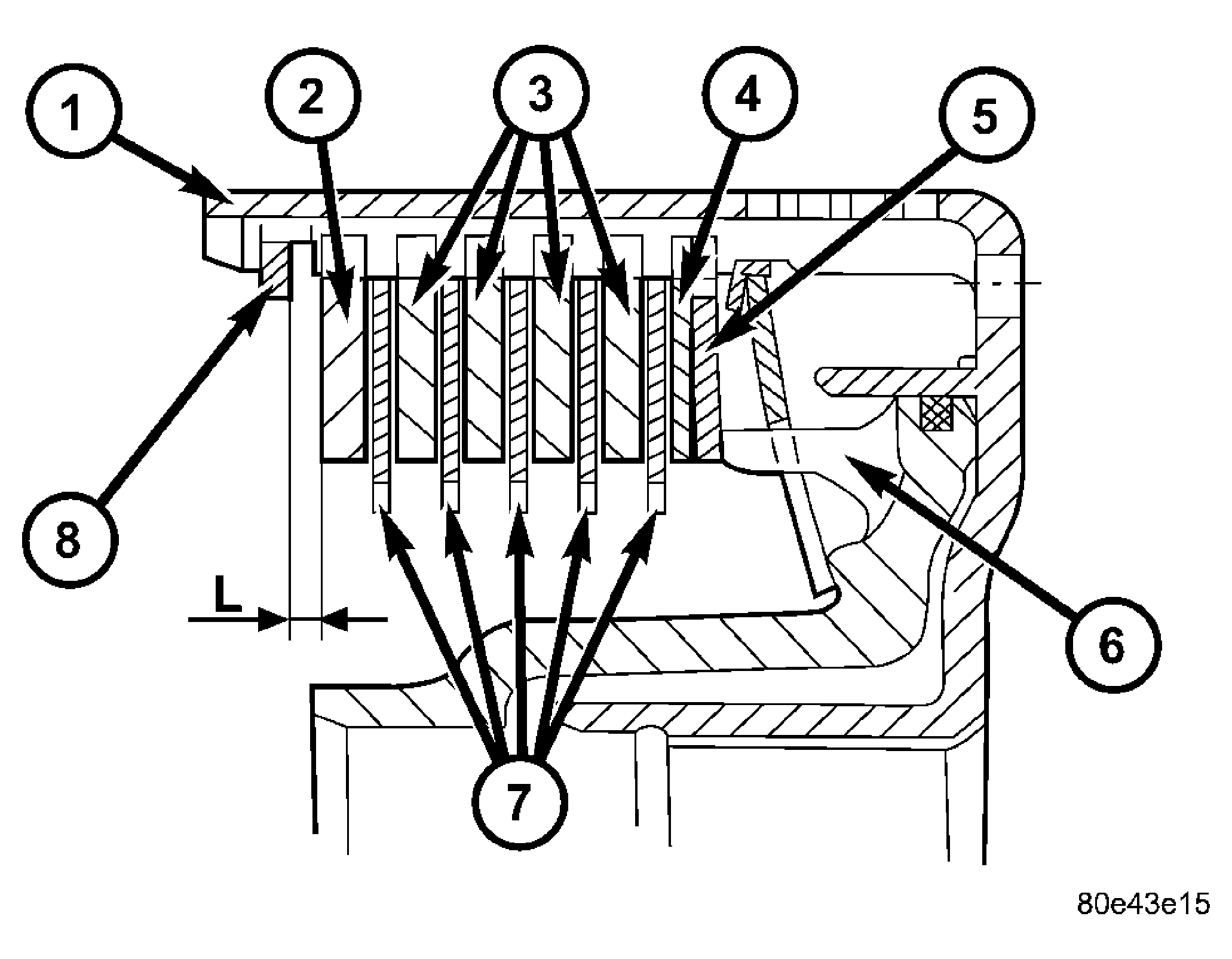

Fig 3: Input Clutch K3 Stack-up - Double Sided Discs

Courtesy of DAIMLERCHRYSLER CORP.

1 - OUTER DISC CARRIER

2 - OUTER MULTIPLE DISC - 4.0 MM (0.158 IN.)

3 - OUTER MULTIPLE DISC - 2.8 MM (0.110 IN.)

4 - OUTER MULTIPLE DISC - 1.8 MM (0.079 IN.)

5 - DISC SPRING

6 - PISTON

7 - FRICTION DISCS - 2.1 MM (0.083 IN.)

8 - SNAP-RING

For transmissions using double sided friction discs, use a feeler gauge to determine the play "L" at three points between the snap-ring (8) and outer multiple-disc (2). See Fig 3.
During the measurement the snap-ring (8) must contact the upper bearing surface of the groove in the outer multiple-disc carrier.
The correct clutch clearance for transmissions with double sided friction discs is 2.3-2.7 mm (0.091-0.106 in.) for three friction disc versions, 2.4-2.8 mm (0.095-0.110 in.) for four disc versions, and 2.5-2.9 mm (0.099-0.114 in.) for five disc versions.

Adjust with snap-ring (8), if necessary. Snap-rings are available in thicknesses of 2.0 mm (0.079 in.), 2.3 mm (0.091 in.), 2.6 mm (0.102 in.), 2.9 mm (0.114 in.), 3.2 mm (0.126 in.), and 3.5 mm (0.138 in.).

Fig 4: Input Clutch K3 Stack-up - Single Sided Discs

Courtesy of DAIMLERCHRYSLER CORP.

1 - OUTER DISC CARRIER

2 - OUTER MULTIPLE DISC - 4.0 MM (0.158 IN.)

3 - OUTER MULTIPLE DISCS

4 - DISC SPRING

5 - PISTON

6 - INNER MULTIPLE DISCS

7 - SNAP-RING

For transmissions using single sided friction discs, use a feeler gauge to determine the play "L" at three points between the snap-ring (7) and outer multiple-disc (2). See Fig 4.
During the measurement the snap-ring (7) must contact the upper bearing surface of the groove in the outer multiple-disc carrier.
The correct clutch clearance for transmissions with single sided friction discs is 2.3-2.7 mm (0.091-0.106 in.) for six friction disc versions, 2.4-2.8 mm (0.095-0.110 in.) for eight disc versions, and 2.5-2.9 mm (0.099-0.114 in.) for ten disc versions.
Adjust with snap-ring (7), if necessary. Snap-rings are available in thicknesses of 2.0 mm (0.079 in.), 2.3 mm (0.091 in.), 2.6 mm (0.102 in.), 2.9 mm (0.114 in.), 3.2 mm (0.126 in.), and 3.5 mm (0.138 in.).
