Passenger Side

WARNING: This page is about a different car, the 2007 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

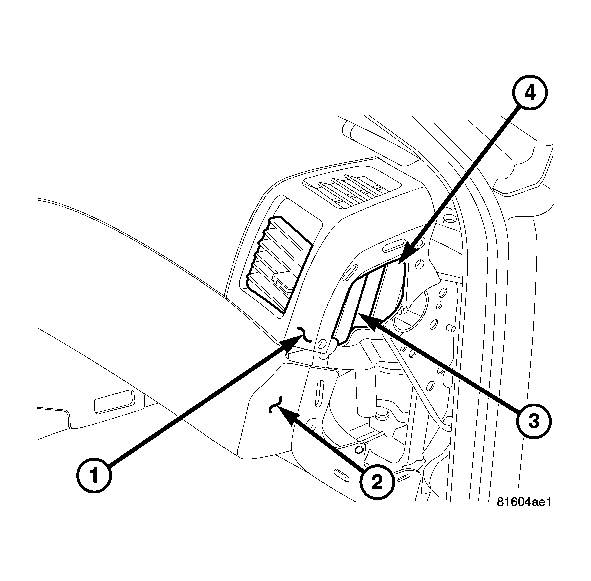

Fig 1: Passenger Side Air Outlet - Install
GC0047189Courtesy of CHRYSLER LLC
NOTE: Make sure that the air outlet is properly aligned to the instrument panel opening and that the foam seal on the outlet is properly installed.
  1. Carefully separate the upper instrument panel cover (1) from the lower instrument panel cover (2) and install the outboard instrument panel air outlet (3) through the glove box opening and connect it to the duct (4).

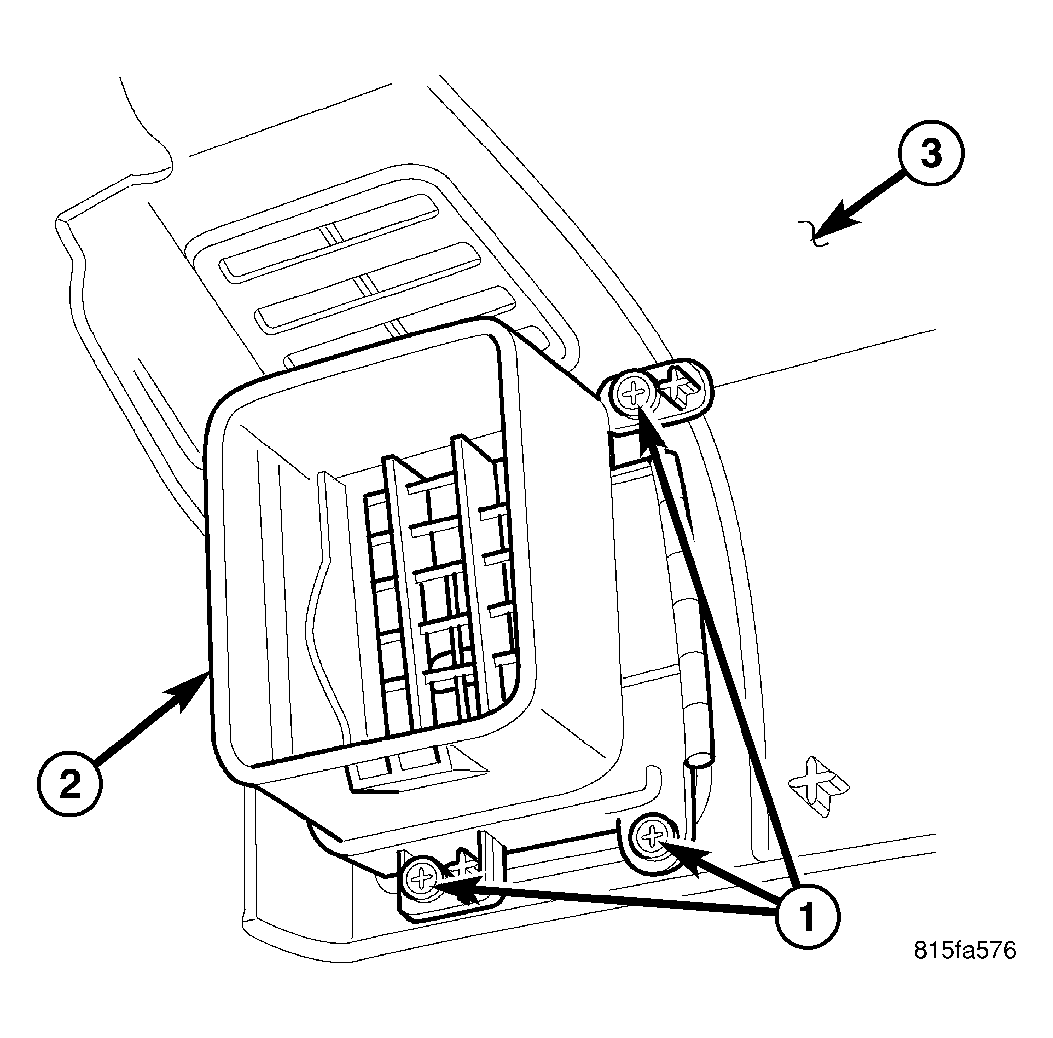

    Fig 2: Air Outlet Screws - Passenger Side
    GC0047187Courtesy of CHRYSLER LLC
    NOTE: Illustration shown with duct removed for clarity.
  2. Through the glove box opening, install the three screws (1) that secure the air outlet (2) to the back side of the instrument panel top cover (3). Tighten the screws to 2 N.m (17 in. lbs.).

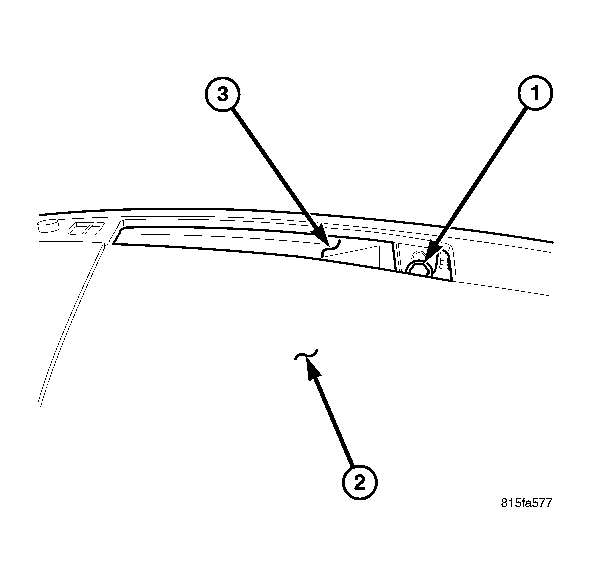

    Fig 3: IP Fence Nut - Passenger Side
    GC0047186Courtesy of CHRYSLER LLC
  3. Through the defroster grille opening, install the nut (1) that secures the top of the instrument panel (2) to the dash panel (3). Tighten the nut to 11 N.m (97 in. lbs.).
  4. Install the defroster grille onto the instrument panel.

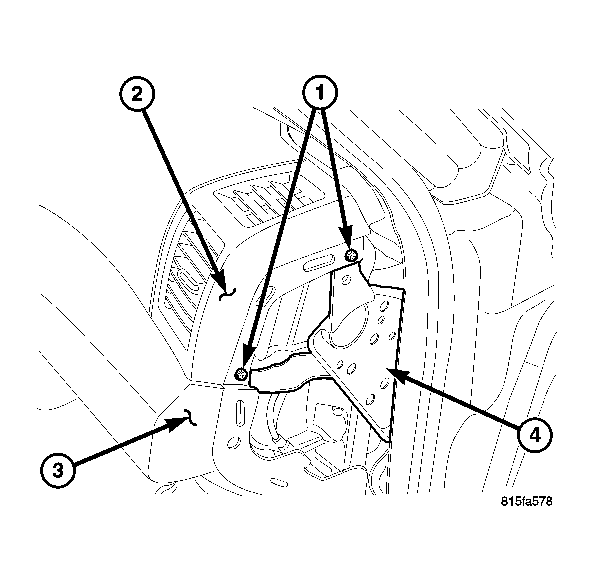

    Fig 4: Upper Cover Screws - Passenger Side
    GC0047185Courtesy of CHRYSLER LLC
  5. Install the screws (1) that secure the upper instrument panel cover (2) and the lower instrument panel cover (3) to the passenger side end of the instrument panel support (4). Tighten the screws to 2.2 N.m (20 in. lbs.).
  6. Install the end cap onto the passenger side of the instrument panel. Make sure the retaining tabs are fully engaged.

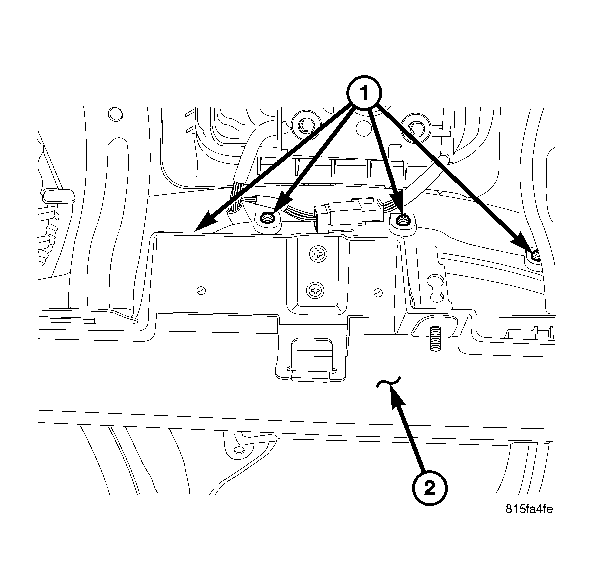

    Fig 5: Upper to Lower Cover Screws - Passenger Side
    GC0047184Courtesy of CHRYSLER LLC
  7. Through the glove box opening, install the four screws (1) that secure the back side of the upper instrument panel cover to the lower instrument panel cover (2). Tighten the screws to 2 N.m (17 in. lbs.).

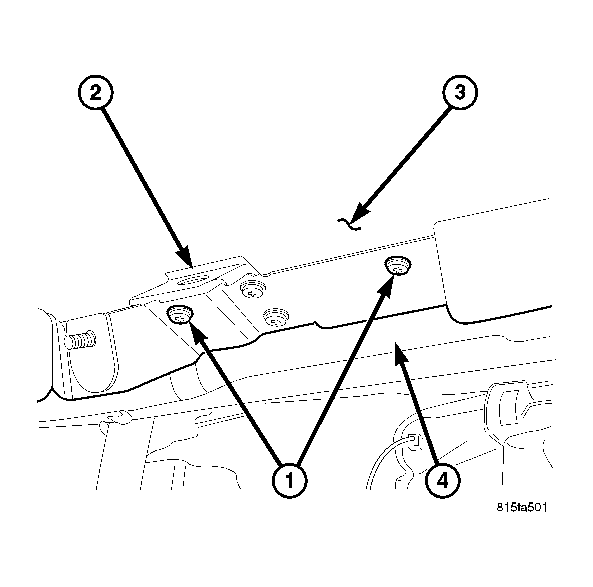

    Fig 6: Lower Cover Screws - Striker
    GC0047183Courtesy of CHRYSLER LLC
  8. Install the two screws (1) located near the glove box striker (2) that secure the lower instrument panel cover (3) to the instrument panel support (4). Tighten the screws to 2.2 N.m (20 in. lbs.).

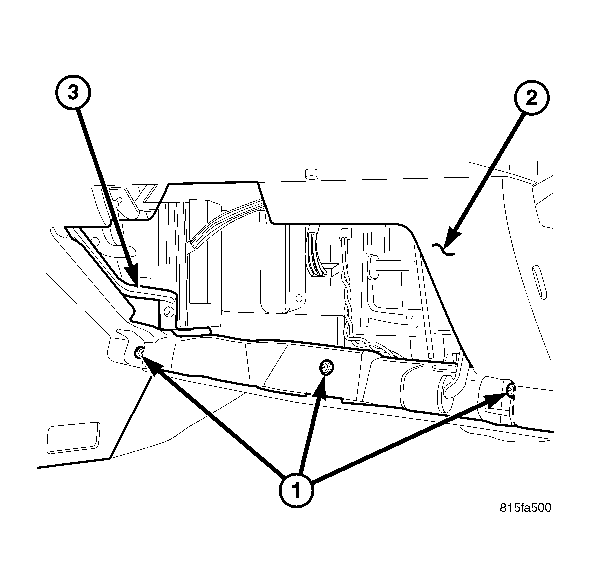

    Fig 7: Lower Cover Screws - Passenger Side
    GC0047182Courtesy of CHRYSLER LLC
  9. Install the three screws (1) that secure the lower instrument panel cover (2) to the bottom of the instrument panel support (3). Tighten the screws to 2.2 N.m (20 in. lbs.).
  10. Install the glove box. Refer to INSTALLATION .
