Section 87 (HVAC Systems (Service Information)): Distribution: Motor-Blower: Description
WARNING: This page is about a different car, the 2007 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

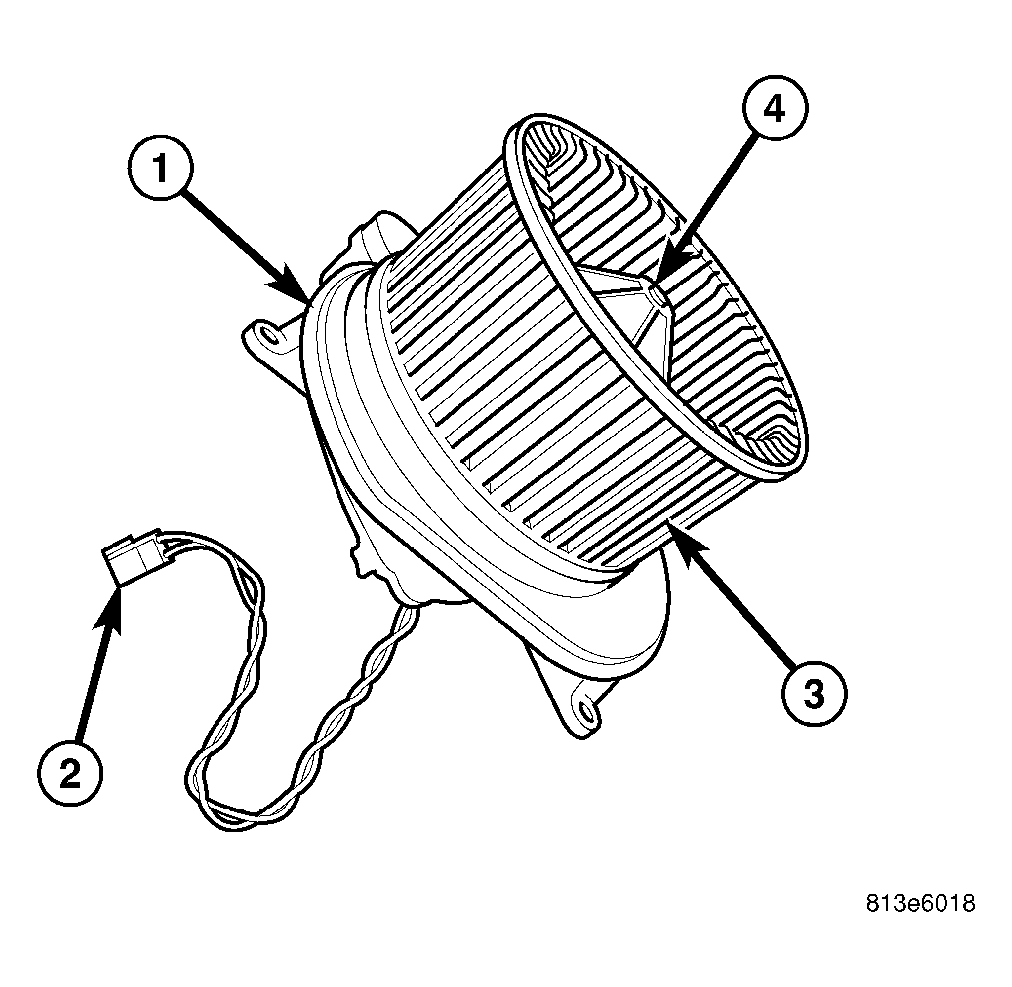

The blower motor (1) is a 12-volt, direct current (DC) motor mounted within a plastic housing with an integral wire lead and connector (2) and squirrel cage-type blower wheel (3) that is secured to the blower motor shaft (4). The blower motor wheel is located in the HVAC air inlet housing which is mounted to the passenger side end of the HVAC housing.
The blower motor can be accessed for service from underneath the instrument panel.
