Resistor-Blower Motor: Removal
WARNING: This page is about a different car, the 2007 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.
WARNING:
The blower motor resistor may get very hot during normal operation. If the blower motor was turned on prior to servicing the blower motor resistor, wait five minutes to allow the blower motor resistors to cool before performing diagnosis or service. Failure to take this precaution can result in possible personal injury.
CAUTION:
Do not operate the blower motor with the blower motor resistor removed from the circuit. Failure to take this precaution can result in vehicle damage.
NOTE:

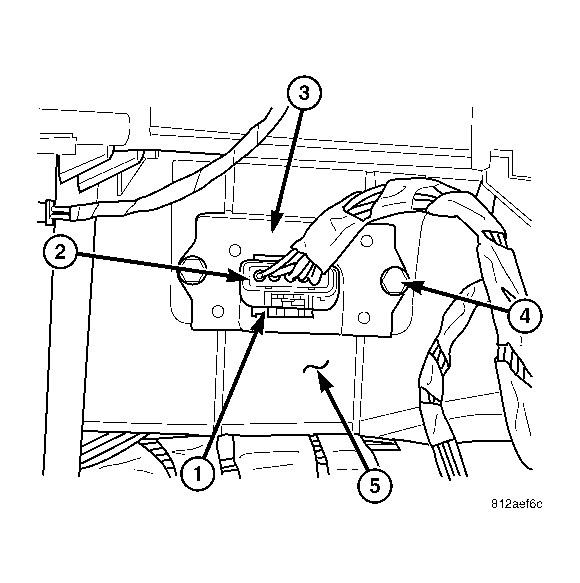

LHD model shown. RHD model similar.
- Disconnect and isolate the negative battery cable.
- Remove the glove box from the instrument panel. Refer to REMOVAL .
- Disengage the wire harness connector locking tab (1) and disconnect the wire harness connector (2) from the blower motor resistor (3).
- Remove the two screws (4) that secure the blower motor resistor to the HVAC housing (5).
- Remove the blower motor resistor from the HVAC housing.
