Relay-A/C Clutch: Removal

WARNING: This page is about a different car, the 2007 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

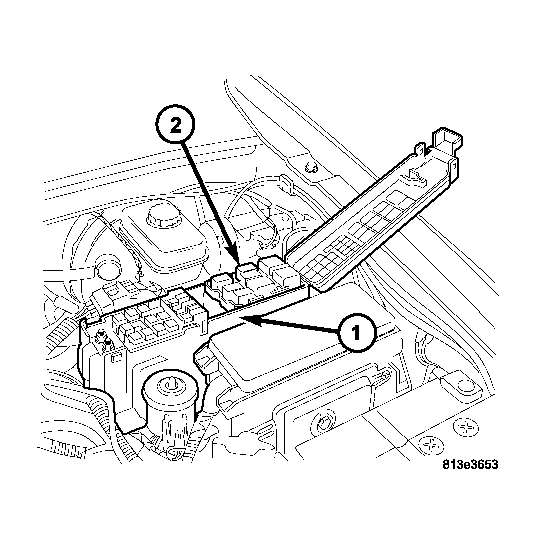

Fig 1: A/C Clutch Relay
GC0028314Courtesy of CHRYSLER LLC
NOTE: LHD gasoline model shown. Diesel and RHD models similar.
  1. Disconnect and isolate the negative battery cable.
  2. Open the cover of the power distribution center (PDC) (1) located in the engine compartment.
    NOTE: Refer to the fuse and relay layout map on the inside of the PDC cover for A/C clutch relay location.
  3. Remove the A/C clutch relay (2) from the PDC.
