Pulley - Generator DECOUPLER: Removal: Notes

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

The generator decoupler is used only with certain engines.

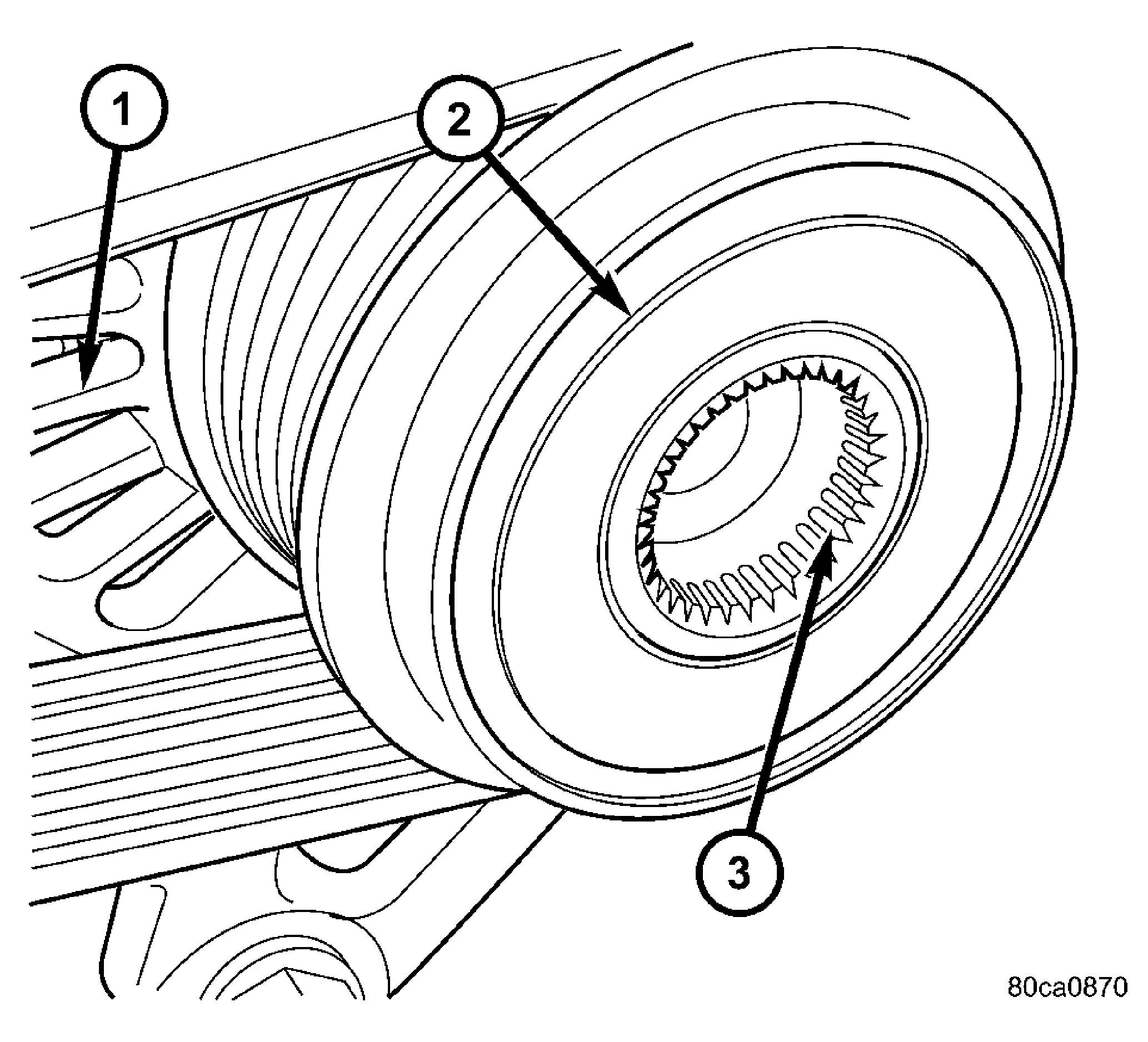

Fig 1: Generator Decoupler Pulley (INA)

Courtesy of DAIMLERCHRYSLER CORP.

1 - GENERATOR

2 - DECOUPLER (INA)

3 - MACHINED SPLINES

Two different type generator decoupler pulleys are used. One can be identified by the use of machined splines (3). See Fig 1.

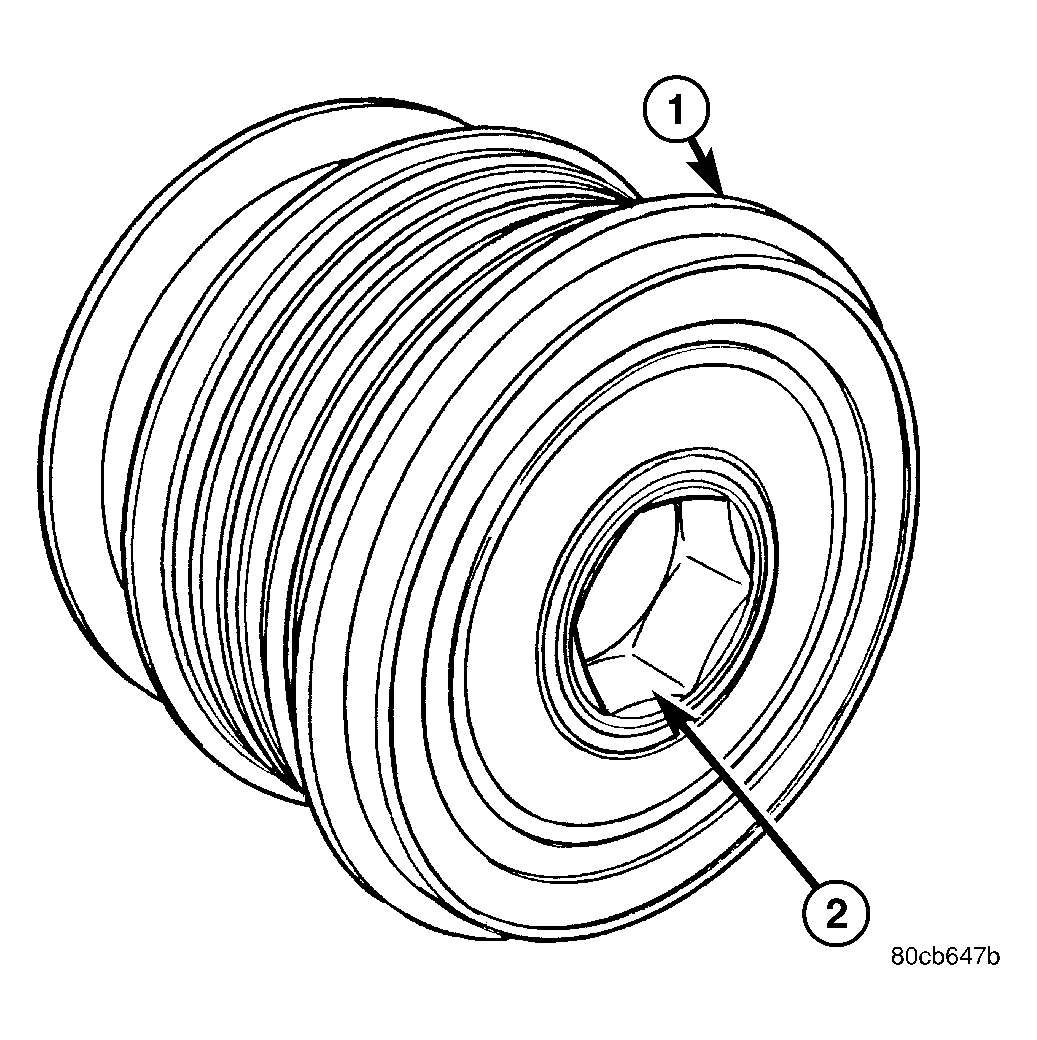

Fig 2: Generator Decoupler Pulley (Litens)

Courtesy of DAIMLERCHRYSLER CORP.

1 - DECOUPLER (LITENS)

2 - HEX OPENING

The other decoupler is equipped with a hex opening (2) and will not use splines. See Fig 2.

Different special tools are required to service each different decoupler. Refer to following procedure:
