Service Information: Installation
WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Position the overhead console near the mounting location on the headliner.

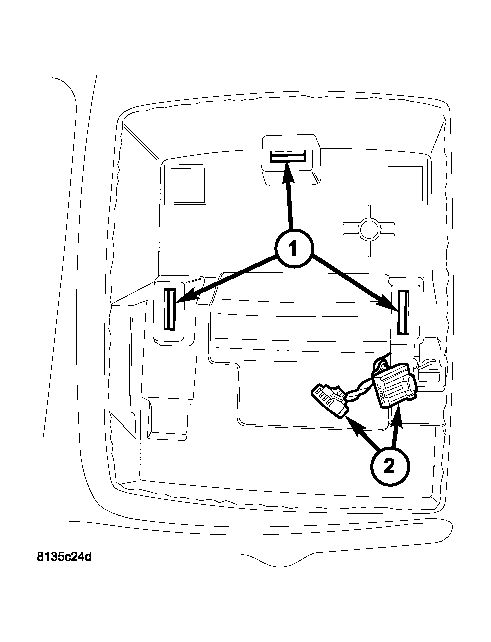

- Reconnect the roof wire harness connectors (2) to the overhead console.
- Align the snap clips on the overhead console housing with their receptacles (1) in the overhead console bracket.
- Push upward firmly and evenly on the sides of the overhead console housing over the snap clip locations until the snap clip is fully engaged with its receptacle in the overhead console bracket.
- Reconnect the battery negative cable.
