Section 47 (Audio System & Video System (Service Information)): Amplifier: Description

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

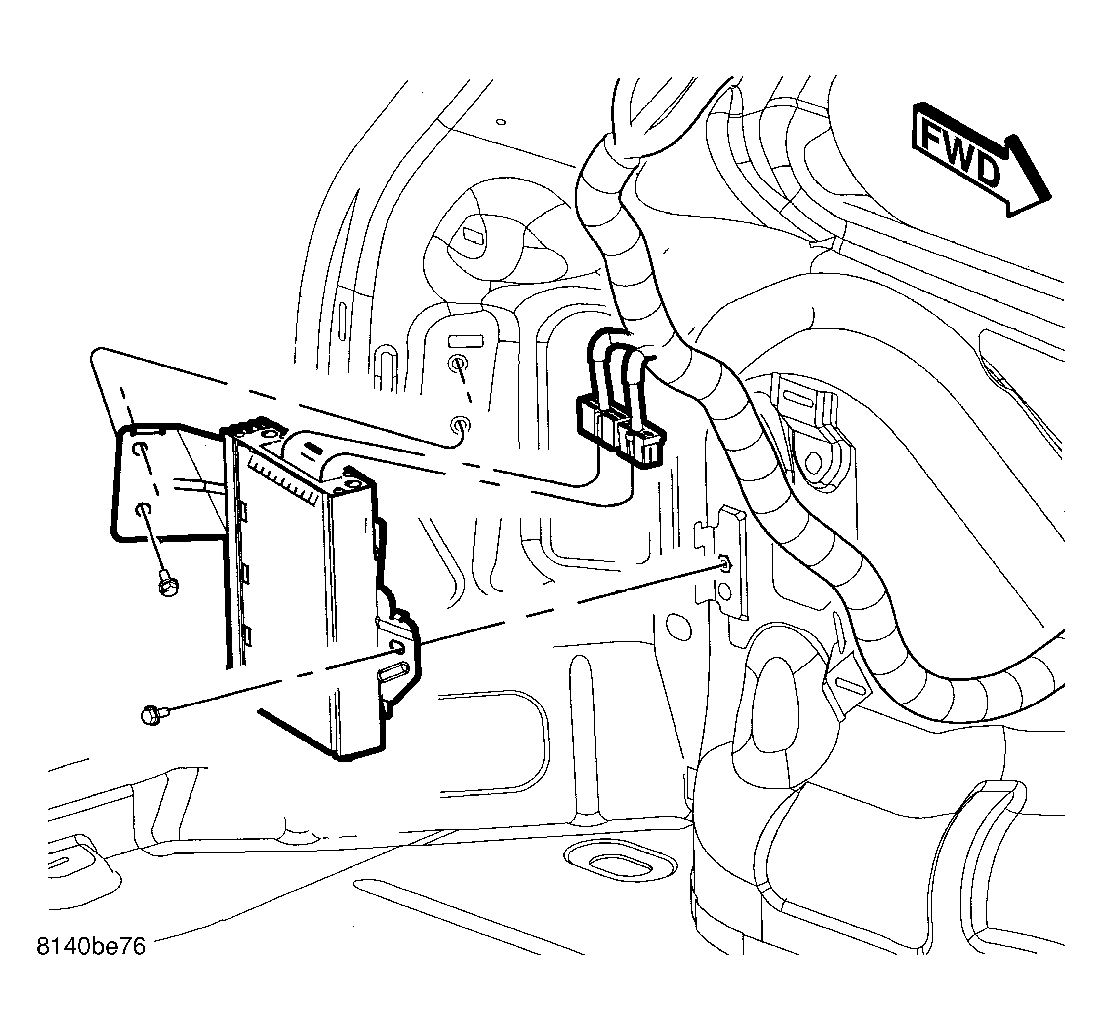

Fig 1: Identifying Amplifier
GC0028940Courtesy of DAIMLERCHRYSLER CORP.

Vehicles equipped with the Boston Acoustics speaker package have a separate amplifier unit. The amplifier is rated at 288 watts. The amplifier is mounted to the left rear quarter panel behind the quarter trim panel.
