Intrusion Module: Installation

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

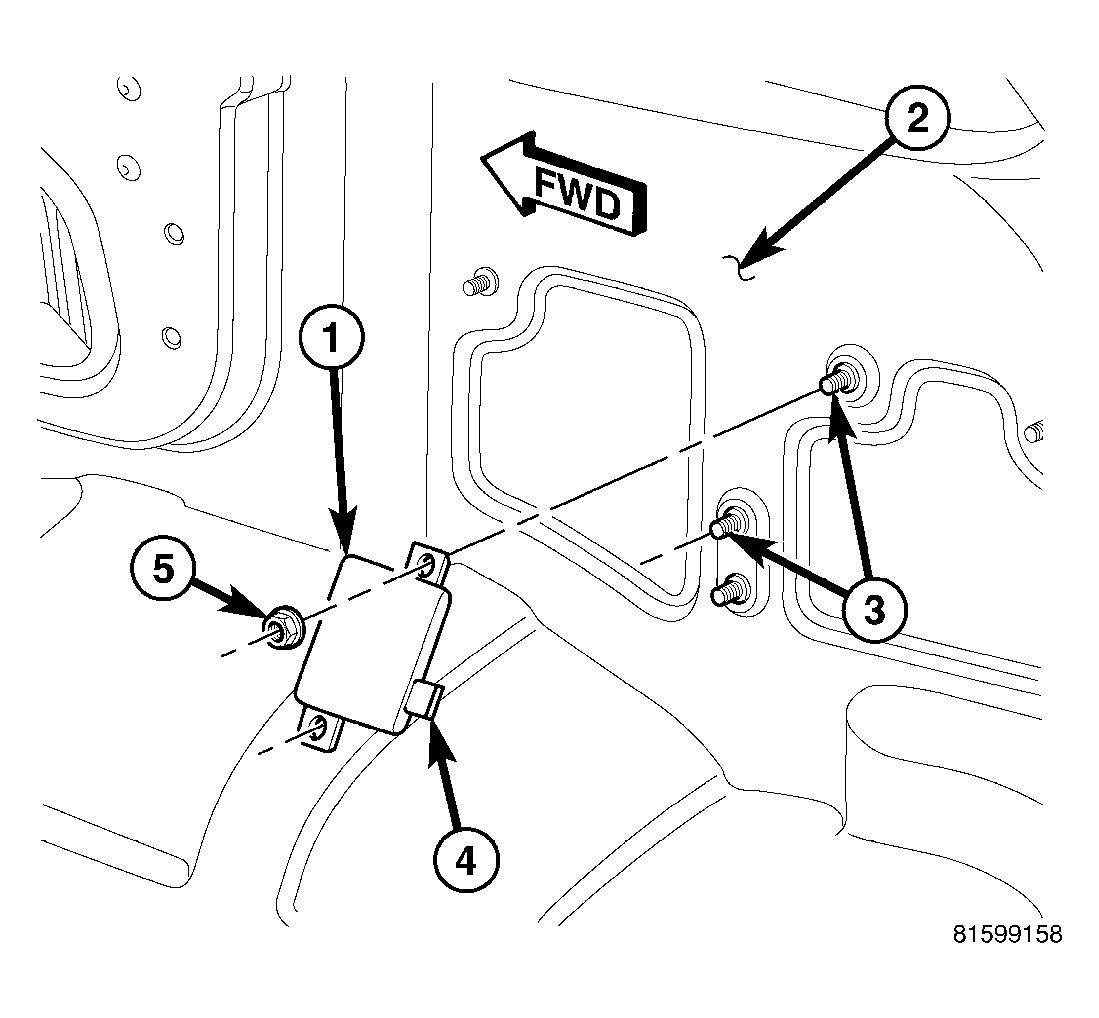

Fig 1: Removing/Installing Intrusion Module
GC0047371Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the intrusion module (1) onto the two studs (3) on the right quarter inner panel (2).
  2. Install and tighten the two nuts (5) that secure the module to the studs on the quarter inner panel. Tighten the nuts to 2 N.m (20 in. lbs.).
  3. Reconnect the take out of the body wire harness to the connector receptacle (4) on the rearward side of the module.
  4. Reinstall the trim onto the inside of the right quarter inner panel. (Refer to BODY/INTERIOR/QUARTER TRIM PANEL - INSTALLATION) .
  5. Reconnect the battery negative cable.
