Section 28 (Starting System): Starter: Installation: 3.7/4.7L

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

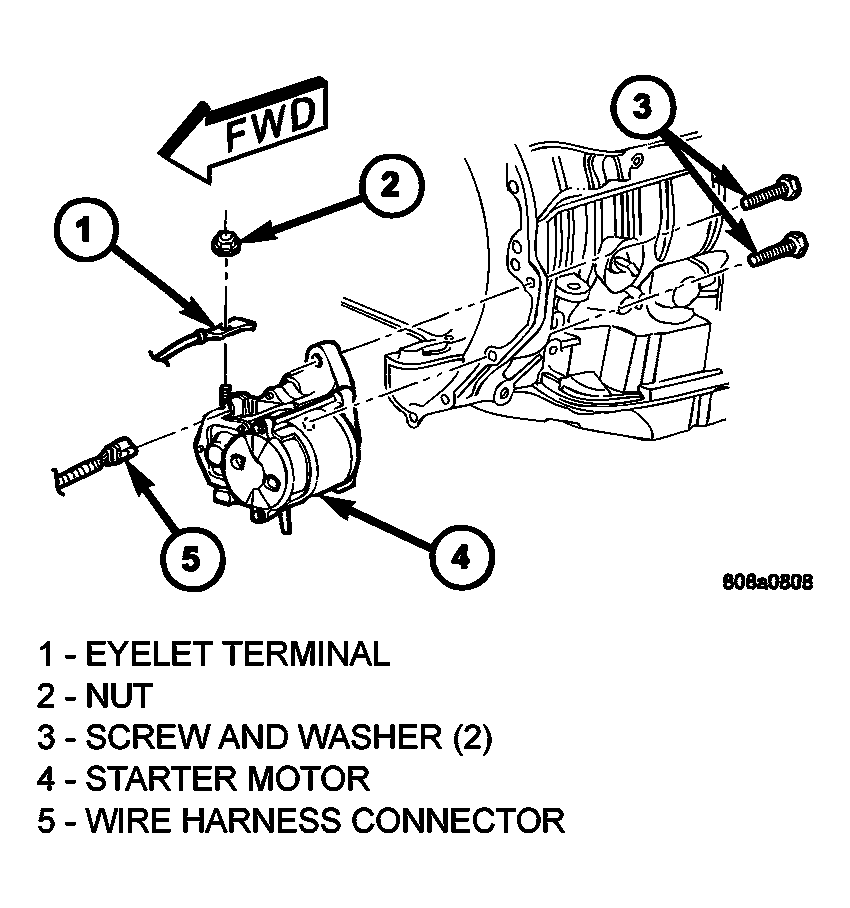

Fig 1: Identifying Starter Motor Components - 3.7L/4.7L
G04283383Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect solenoid wire to starter motor (snaps on).
  2. Position battery cable (1) to solenoid stud. Install and tighten battery cable eyelet nut (2). Torque nut to 25 N.m (19 ft. lbs.). Do not allow starter motor to hang from wire harness.
  3. Position starter motor (4) to transmission.
  4. If equipped with automatic transmission, slide cooler tube bracket into position.
  5. Install and tighten both bolts (3). Torque bolts to 68 N.m (50 ft. lbs.).
  6. Note: If equipped with 4WD and certain transmissions, a support bracket is used between front axle and side of transmission. Install 2 support bracket bolts at transmission.
  7. Note: If equipped with 4WD, install front drive shaft.
  8. Lower vehicle.
  9. Connect negative battery cable.
