Section 174 (Audio System & Video System (Service Information)): Amplifier: Description: Description

WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

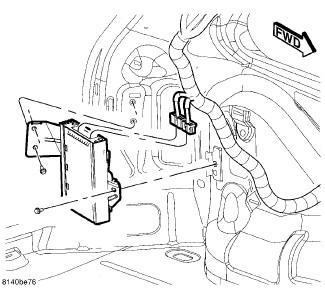

Fig 1: AMPLIFIER

Courtesy of CHRYSLER LLC

Vehicles equipped with the Boston Acoustics speaker package have a separate amplifier unit. The amplifier is rated at 288 watts. The amplifier is mounted to the left rear quarter panel behind the quarter trim panel.
