Module-Memory Mirror: Installation

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

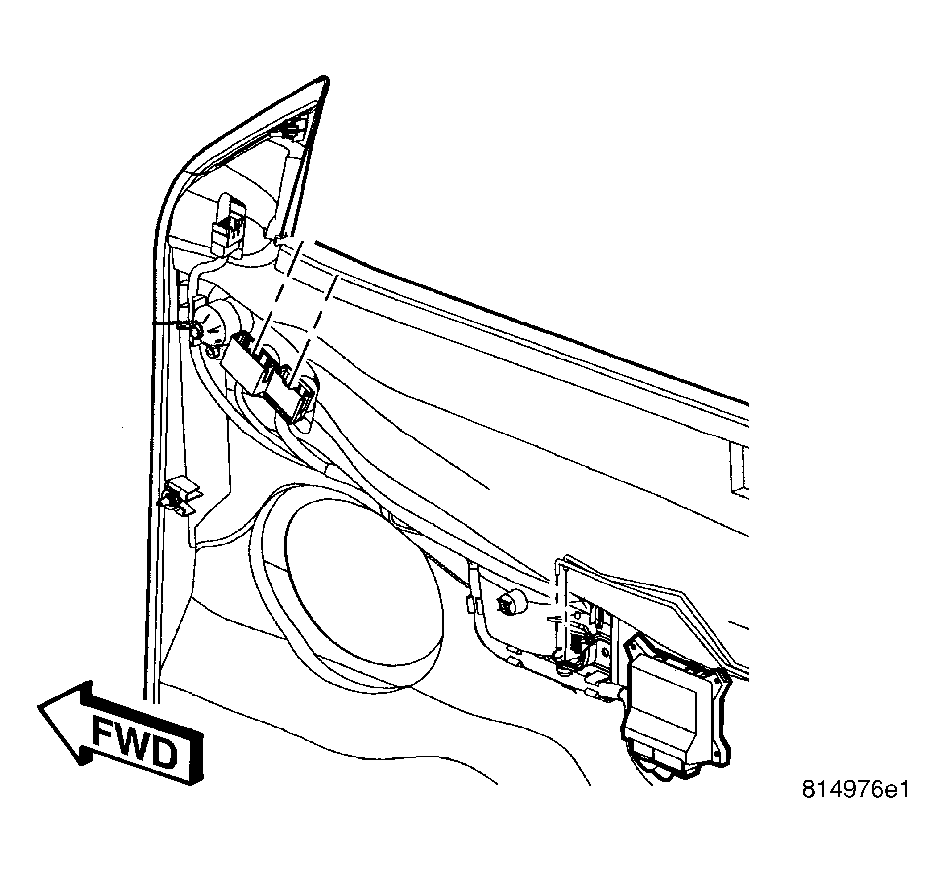

Fig 1: Identifying Memory Mirror Module
GC0027618Courtesy of DAIMLERCHRYSLER CORP.
  1. Position module on door trim panel and install fasteners.
  2. Connect the electrical connector to module.
  3. Install the door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - INSTALLATION) .
  4. Connect the battery negative cable.
