Without APPS (Accelerator Pedal Position Sensor)

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Throttle Control Cable

Courtesy of DAIMLERCHRYSLER CORP.

The following procedure applies only to vehicles without the Adjustable Pedal Package (code XAP). It also applies to vehicles not equipped with an accelerator pedal position sensor.

The accelerator pedal is serviced as a complete assembly including the bracket.

From inside the vehicle, hold up accelerator pedal. Remove plastic cable retainer (clip) (2) and throttle cable core wire from upper end of accelerator pedal arm. Plastic cable retainer (clip) (2) snaps into top of pedal arm.

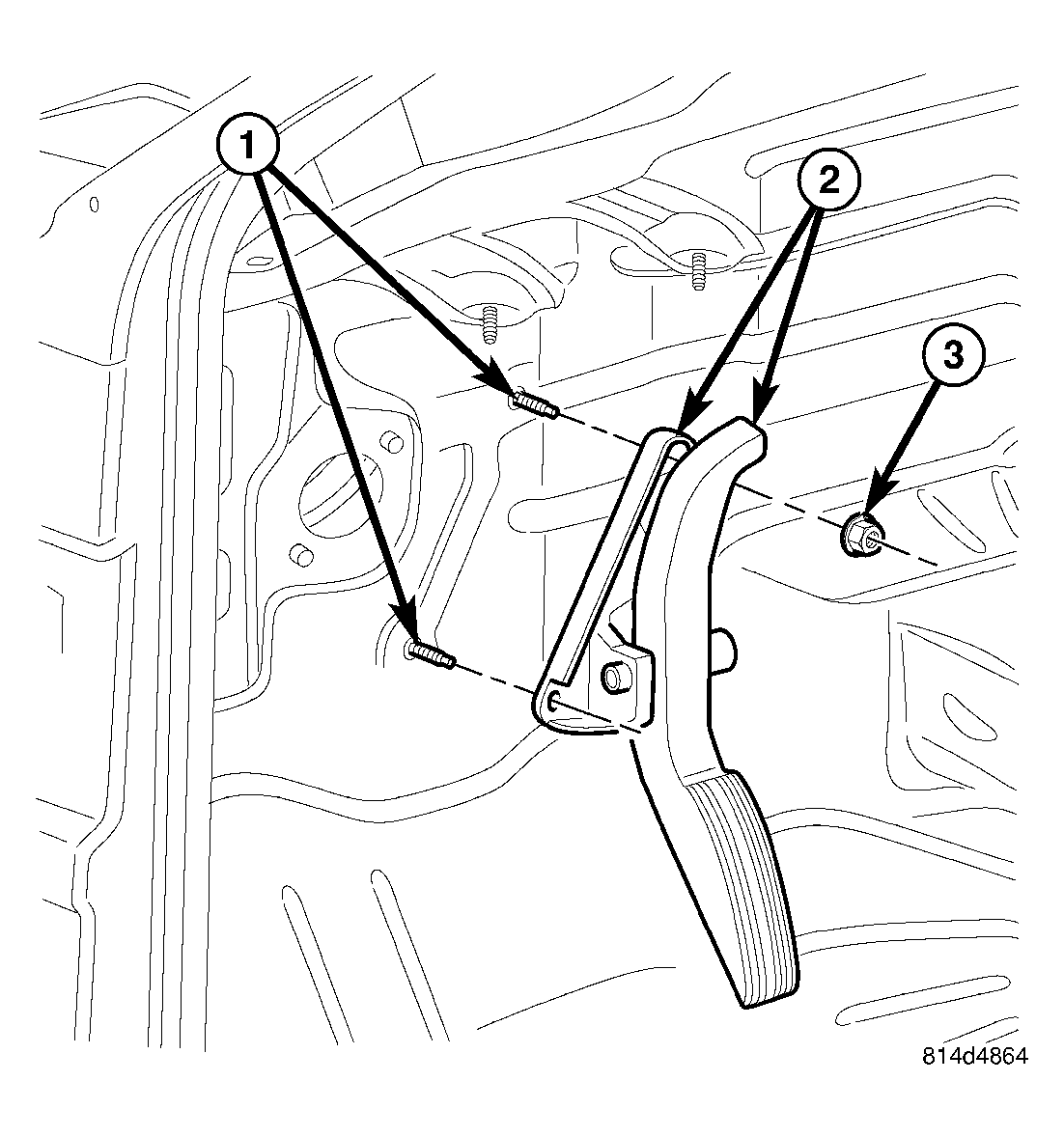

Fig 2: Accelerator Pedal W/O APPS
Courtesy of DAIMLERCHRYSLER CORP.
Remove two accelerator pedal mounting bracket nuts (3). Remove accelerator pedal assembly (2).
