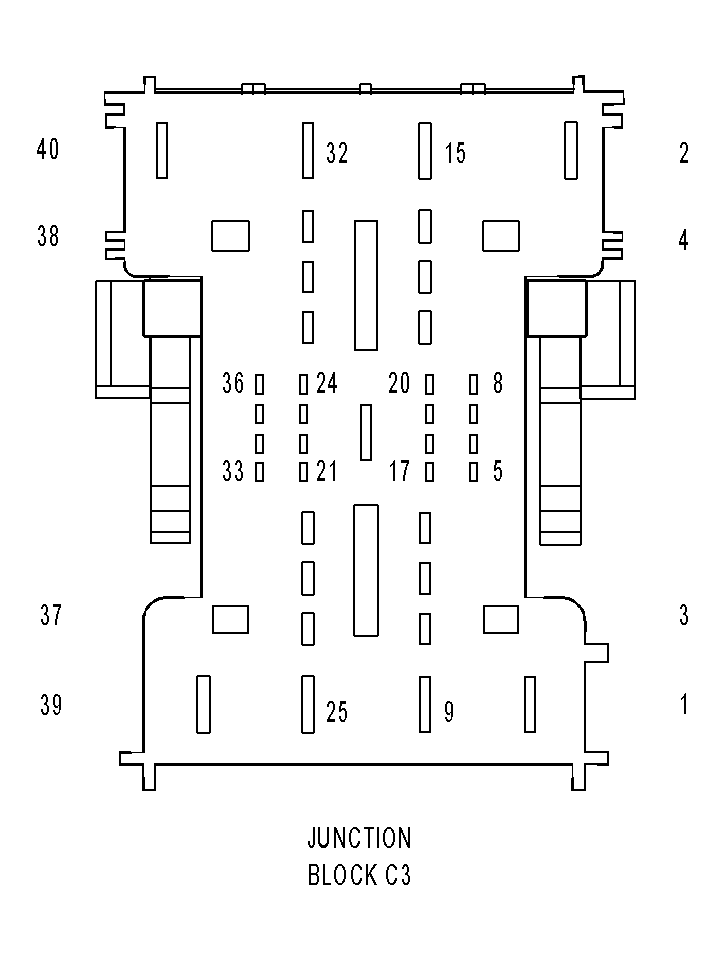

Junction Block Connector End View (C3)
JUNCTION BLOCK C3 - 40 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A929 16RD/DB | FUSED RUN/ACCESSORY DELAY RELAY OUTPUT |
| 2 | A33 16RD/YL (POWER SEATS) | FUSED B(+) |
| 3 | L50 18WT/TN | BRAKE LAMP SWITCH OUTPUT |
| 4 | - | - |
| 5 | A114 20OR/RD | FUSED B(+) (I.O.D.) |
| 6 | A114 20OR/RD (SATELLITE RADIO) | FUSED B(+) (I.O.D.) |
| 7 | - | - |
| 8 | - | - |
| 9 | A929 16RD/LG | FUSED RUN/ACCESSORY DELAY RELAY OUTPUT |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | Z911 20BK | GROUND |
| 15 | C51 14LB/BR | REAR BLOWER MOTOR RELAY OUTPUT |
| 16 | A33 16BK/RD (PASSENGER POWER SEAT) | FUSED B(+) |
| 17 | - | - |
| 18 | A114 18GY/RD | FUSED B(+) (I.O.D.) |
| 19 | - | - |
| 20 | F921 20PK/YL | FUSED RUN RELAY OUTPUT |
| 21 | C17 20LB/WT | FUSED REAR WINDOW DEFOGGER RELAY OUTPUT |
| 22 | - | - |
| 23 | - | - |
| 24 | - | - |
| 25 | Q81 18OR/GY | FLIP-UP GLASS RELAY OUTPUT |
| 26 | A931 20RD/WT | FUSED B(+) |
| 27 | A932 18RD/DG | FUSED B(+) |
| 28 | A46 18RD/GY | REAR WIPER RELAY OUTPUT |
| 29 | - | - |
| 30 | A934 18RD/OR | FUSED RUN/ACCESSORY DELAY RELAY OUTPUT |
| 31 | F850 20LB/PK | FUSED RUN RELAY OUTPUT |
| 32 | C515 12LB/OR | REAR WINDOW DEFOGGER RELAY OUTPUT |
| 33 | C17 20LB/DG | FUSED REAR WINDOW DEFOGGER RELAY OUTPUT |
| 34 | P792 16LG/TN | PASSENGER DOORS UNLOCK RELAY OUTPUT |
| 35 | P701 16LG/DG | DRIVER DOOR UNLOCK RELAY OUTPUT |
| 36 | P778 16LG/LB | DOOR LOCK RELAY OUTPUT |
| 37 | A27 20RD/LB | FUSED B(+) |
| 38 | F200 20PK/LB | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 39 | A116 14YL/RD (PREMIUM AUDIO) | FUSED B(+) |
| 40 | A205 14RD/OR (EXCEPT BASE) | FUSED B(+) |
