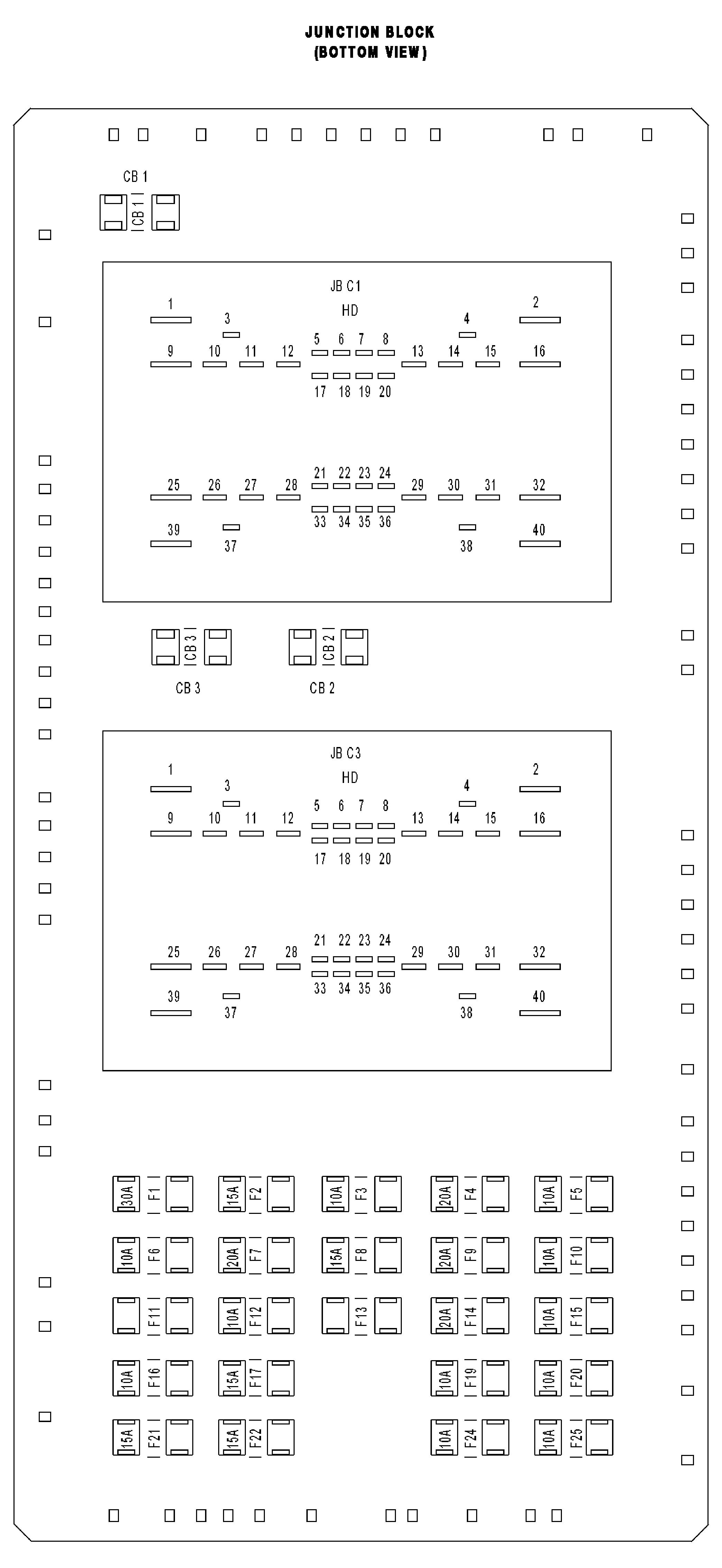

Circuit Breaker 2 Connector End View

CIRCUIT BREAKER NO. 2 - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CB NO.	AMPS	FUSED CIRCUIT	FUNCTION
1	20A	A906	FUSED B(+)
2	20A	A33	FUSED B(+)
