Circuit Breaker 1 Connector End View

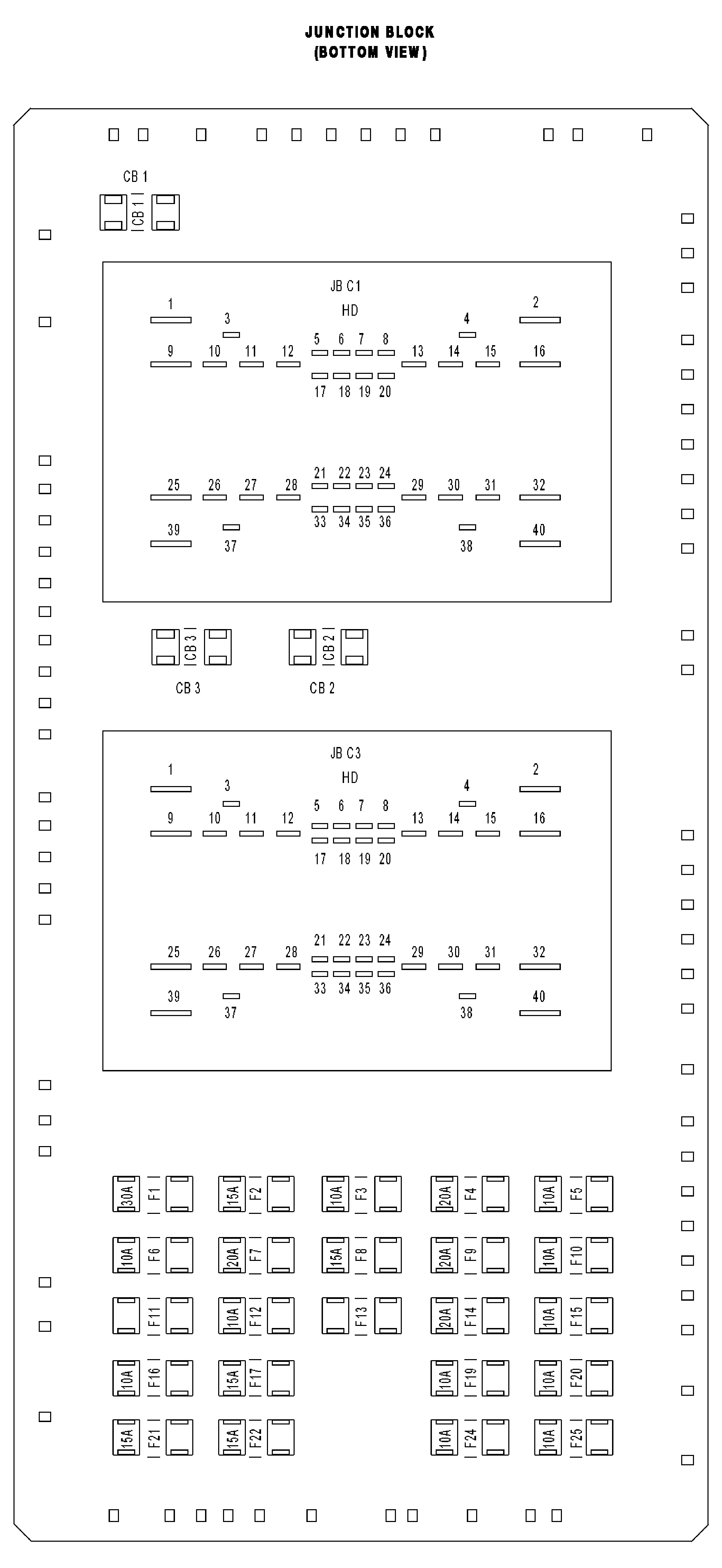

CIRCUIT BREAKER NO. 1 - 2 WAY

GCXH680093Courtesy of DAIMLERCHRYSLER CORP.
CB NO. AMPS FUSED CIRCUIT FUNCTION
1 20A A901 FUSED B(+)
2 20A A5 FUSED B(+)
