Switch-Power Window: Installation

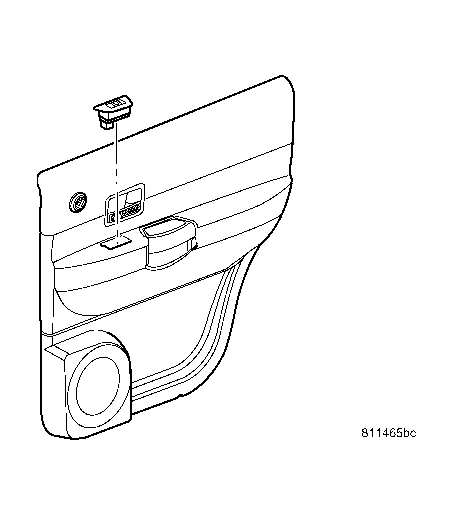

Fig 1: Removal & Installation Of Door Switch

Courtesy of DAIMLERCHRYSLER CORP.

The driver and front passenger side power window switch is included in the window/lock switch. (Refer to ELECTRICAL/POWER LOCKS/POWER LOCK SWITCH - INSTALLATION) .

1. Install the switch to the door trim panel.
2. Install the door trim panel (Refer to BODY/DOORS - REAR/TRIM PANEL - INSTALLATION) .
3. Connect the battery negative cable.
