Modulating Pressure Control Solenoid Valve

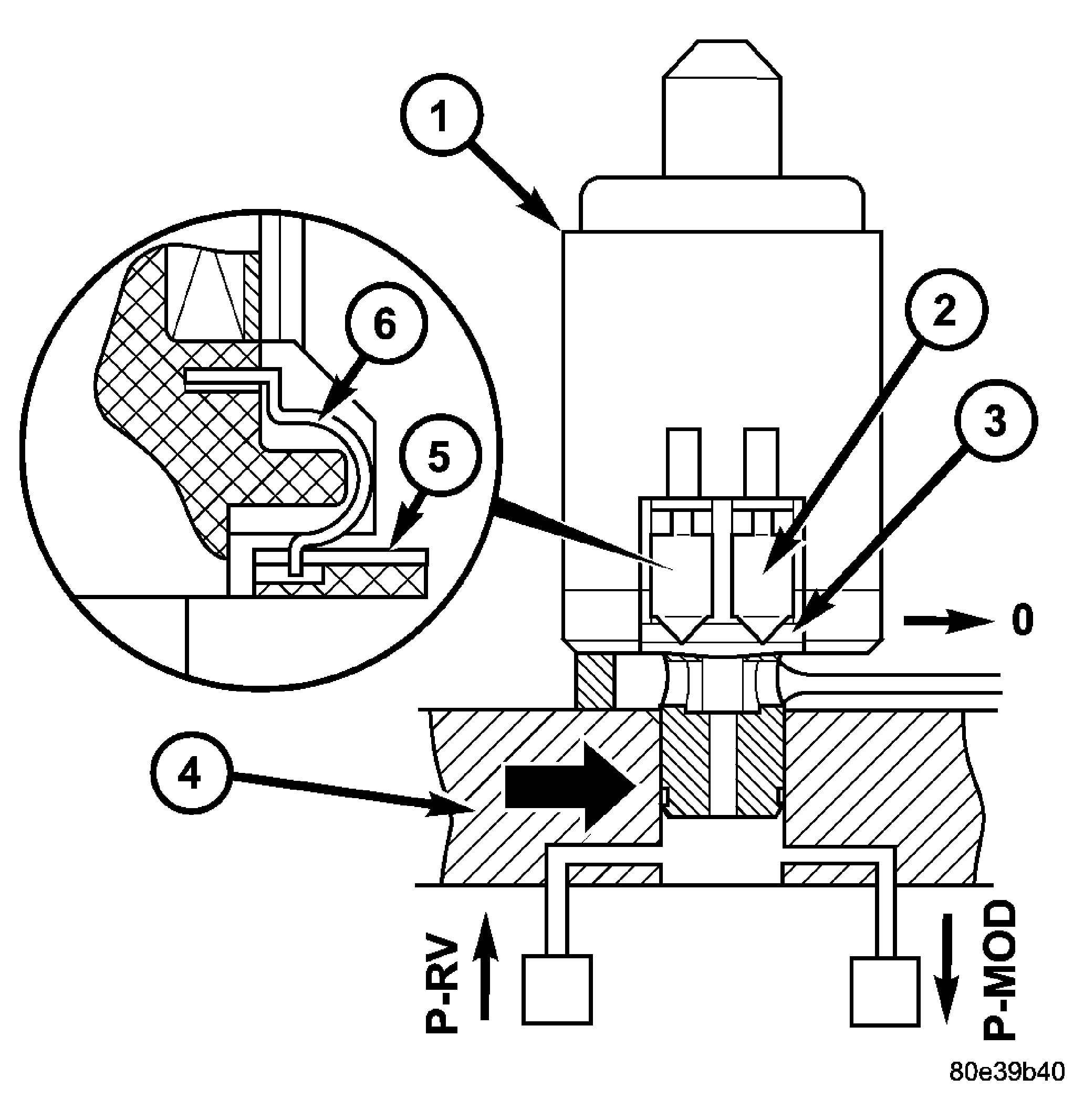

Fig 1: Cutaway View Of Modulating Pressure Control Solenoid Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - MODULATING PRESSURE CONTROL SOLENOID VALVE

2 - CONTACT SPRING

3 - CONDUCTOR TRACK

4 - VALVE HOUSING SHIFT PLATE

5 - CONDUCTOR TRACK

6 - CONTACT SPRING

The modulating pressure control solenoid valve (1) is located in the shell of the electric valve control unit and pressed against the shift plate by a spring. See Fig 1.

Its purpose is control the modulating pressure depending on the continuously changing operating conditions, such as load and gear change.

The modulating pressure regulating solenoid valve (1) has an interference fit and is sealed off to the valve body of the shift plate (4) by a seal (arrow). The contact springs (2) at the solenoid valve engage in a slot in the conductor tracks (3). The force of the contact springs (2) ensures secure contacts.
