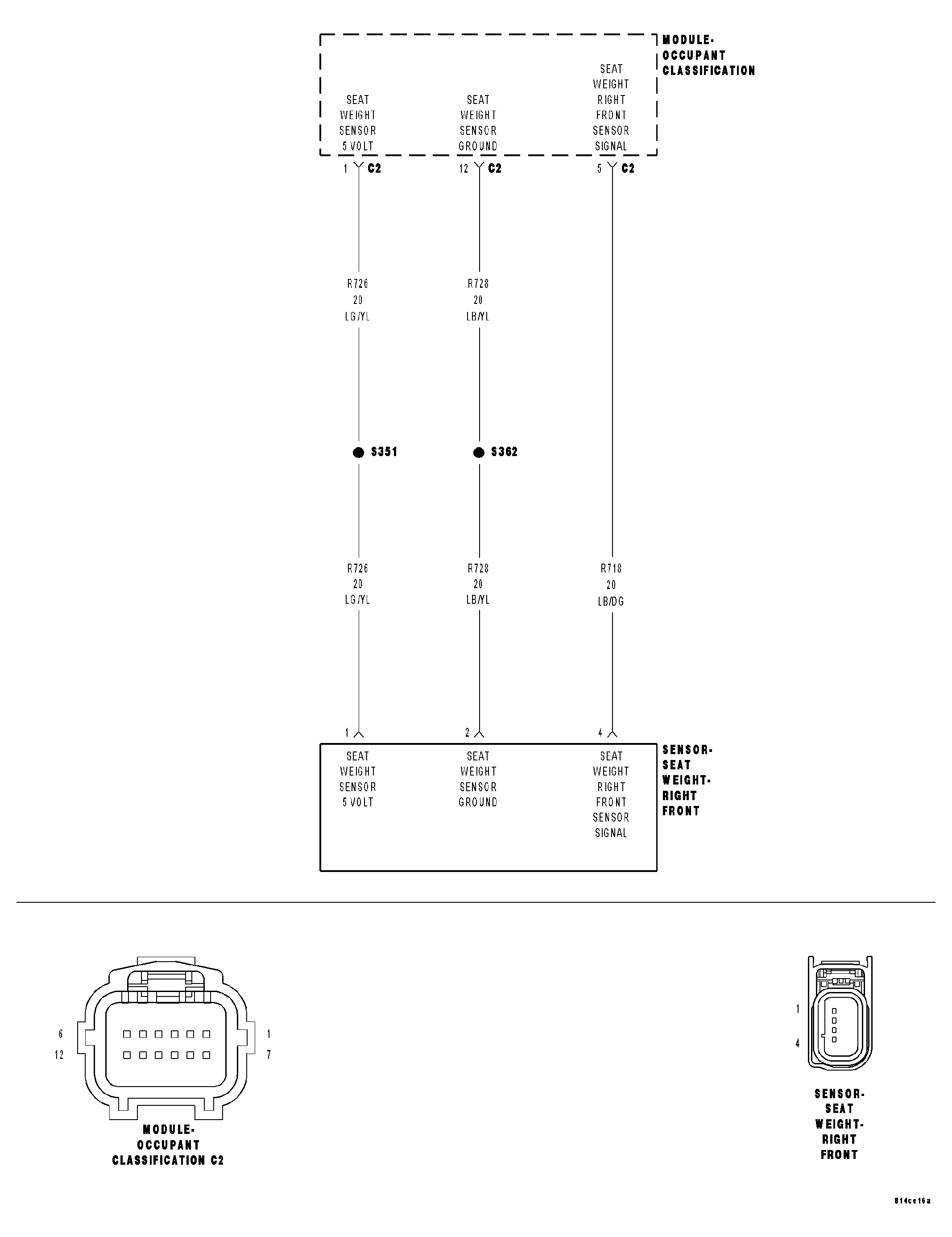

Home >> Jeep >> 2006 >> Commander Base, 3.7 K, AWD >> Repair and Diagnosis (Single Page) >> Restraints >> Restraints Control Systems >> DTCS B1B7D To B1BBB >> Diagnosis And Testing >> B1B7F-Passenger Seat Weight Sensor 2 - Right Front Input Circuit High >> Circuit Schematic
