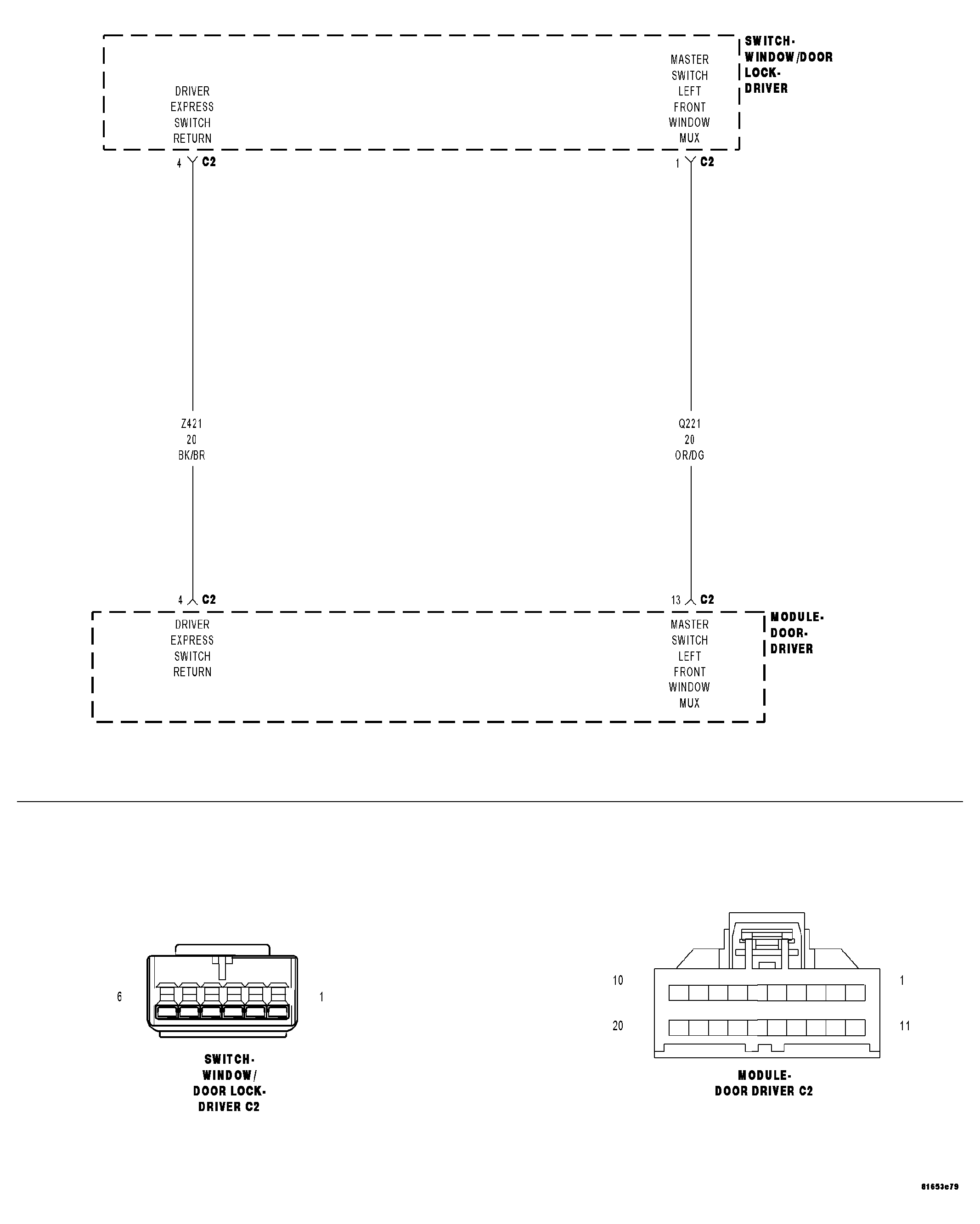

Home >> Jeep >> 2006 >> Commander Base, 3.7 K, AWD >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> Power Windows - Electrical Diagnostics >> DTC Troubleshooting >> B190E-Driver Window Switch Circuit Low-DDM >> Circuit Schematic
