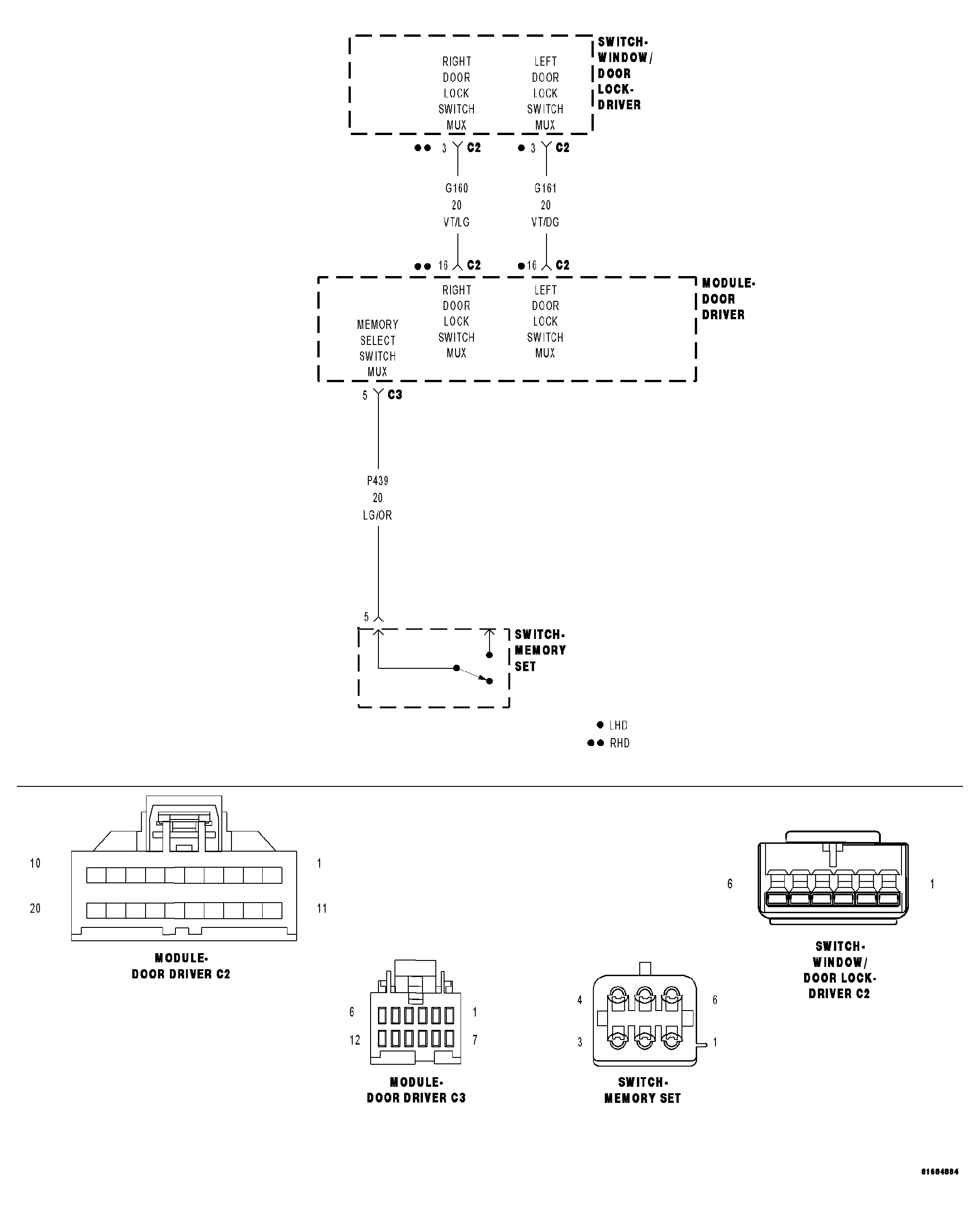

Home >> Jeep >> 2006 >> Commander Base, 3.7 K, AWD >> Repair and Diagnosis (Single Page) >> Body & Frame >> Mirrors >> Power Mirrors - Electrical Diagnostics >> DTC Troubleshooting >> B1D4C-Memory Switch Input Circuit High - DDM >> Circuit Schematic
