Pilot Bearing: Installation
- Lubricate new bearing with Mopar high temperature bearing grease or equivalent.

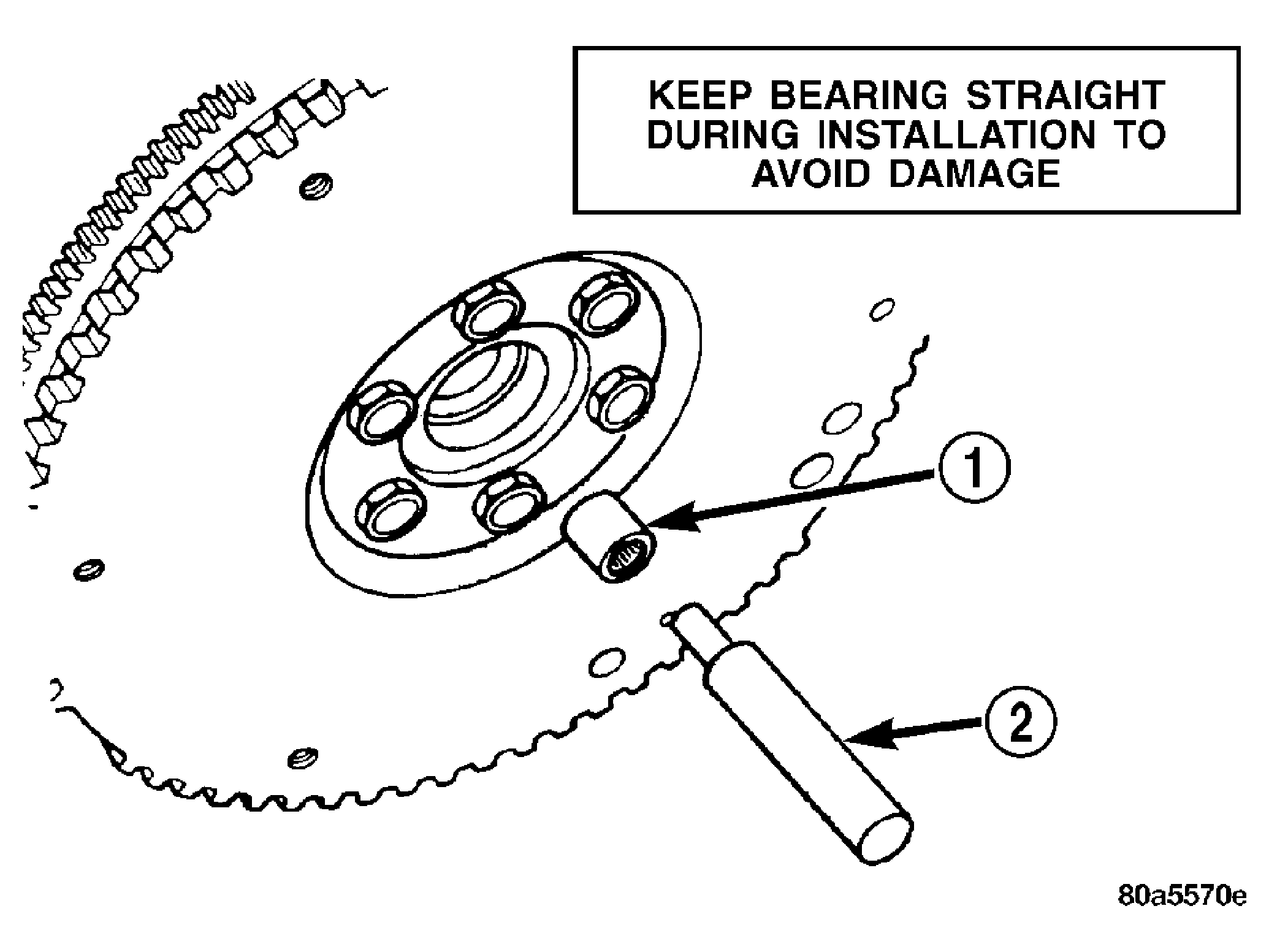

- Start new bearing into crankshaft by hand. Then seat bearing with clutch alignment tool. See Fig 1.
1 - PILOT BEARING 2 - ALIGNMENT TOOL - Lightly scuff sand flywheel surface with 180 grit emery cloth. Then clean surface with wax and grease remover.
- Install clutch disc and pressure plate.
- Install transmission.
