Steering Wheel: Removal

  1. Disable and remove the drivers side airbag. (Refer to ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - REMOVAL) .
  2. Partially remove the steering wheel bolt and leave the bolt in the column.
  3. Install puller C-3894-A or equivalent using the top of the bolt to push on. See Fig 1.
    NOTE: Ensure the puller jaws are seated in the pockets of the steering wheel armature. See Fig 2.

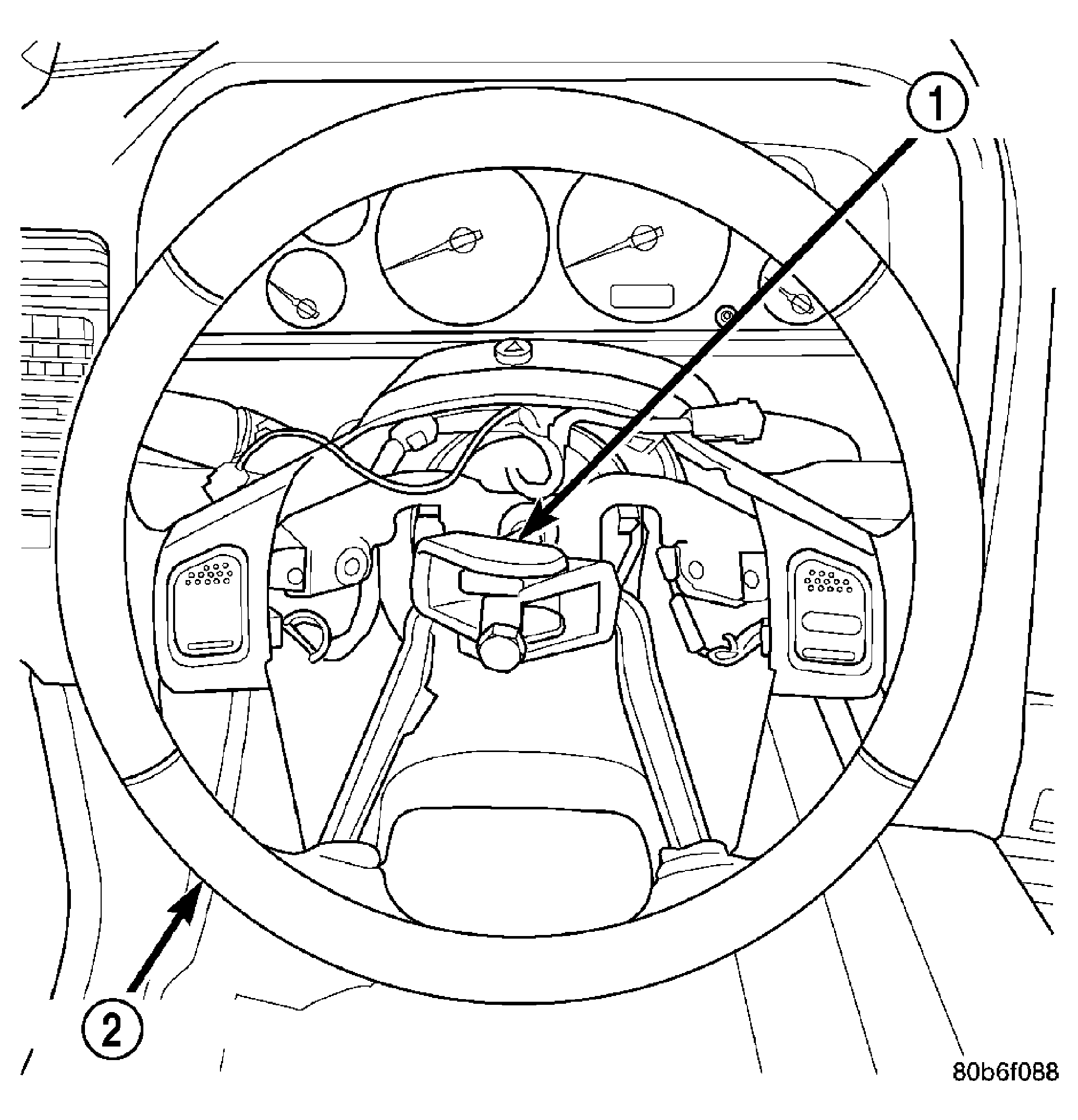

    Fig 1: Steering Wheel Puller
    GC0025238Courtesy of DAIMLERCHRYSLER CORP.
    1 - PULLER C-3894-A
    2 - STEERING WHEEL

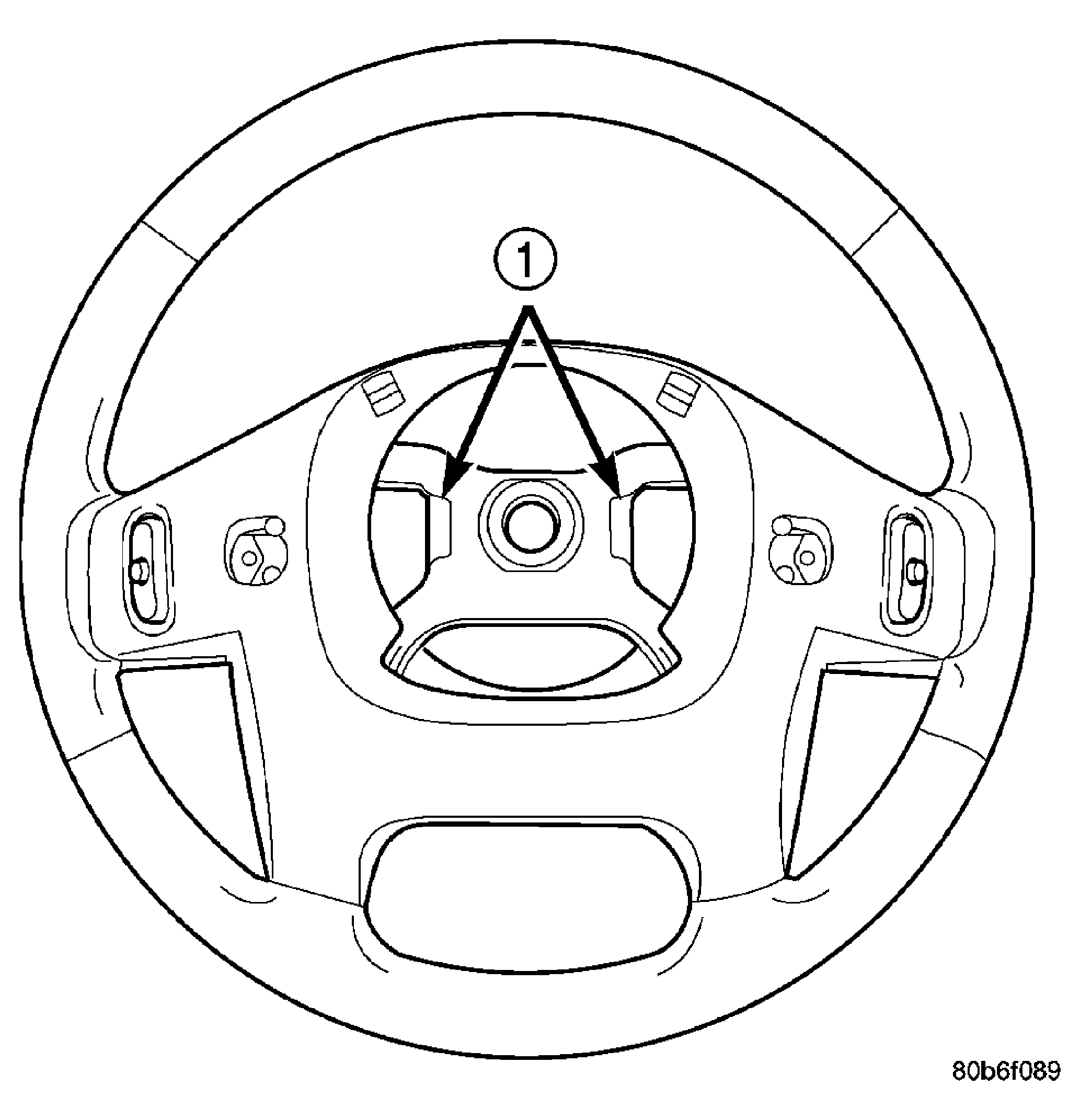

    Fig 2: Steering Wheel Pockets
    GC0025239Courtesy of DAIMLERCHRYSLER CORP.
    1 - STEERING WHEEL POCKETS
  4. Remove the steering wheel.
