Hoisting Recommendations: Notes

Refer to the Owner's Manual for emergency vehicle lifting procedures.

When properly positioned, a floor jack can be used to lift a Jeep vehicle. See Fig 1. Support the vehicle in the raised position with jack stands at the front and rear ends of the frame rails.

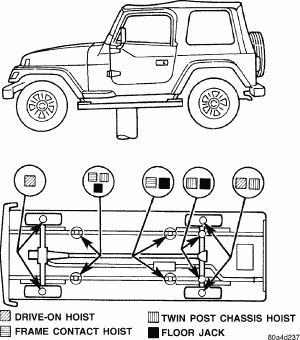

Fig 1: Vehicle Lifting Locations

Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: Do not attempt to lift a Jeep vehicle with a floor jack positioned under:

An axle tube.
A body side sill.
A steering linkage component.
A drive shaft.
The engine or transmission oil pan.
The fuel tank.
A front suspension arm.
Transfer case.

NOTE: Use the correct sub-frame rail or frame rail lifting locations only.
