Engine Block: Description

WARNING: This page is about a different variant/trim than selected.

The cast iron cylinder block is a two-piece assembly, consisting of the cylinder block and bedplate. See Fig 1. The bedplate incorporates the main bearing caps and bolts to the cylinder block. This design offers a much stronger lower end and increased cylinder block rigidity. The rear oil seal retainer is integral with the block. The bedplate and block are serviced as an assembly.

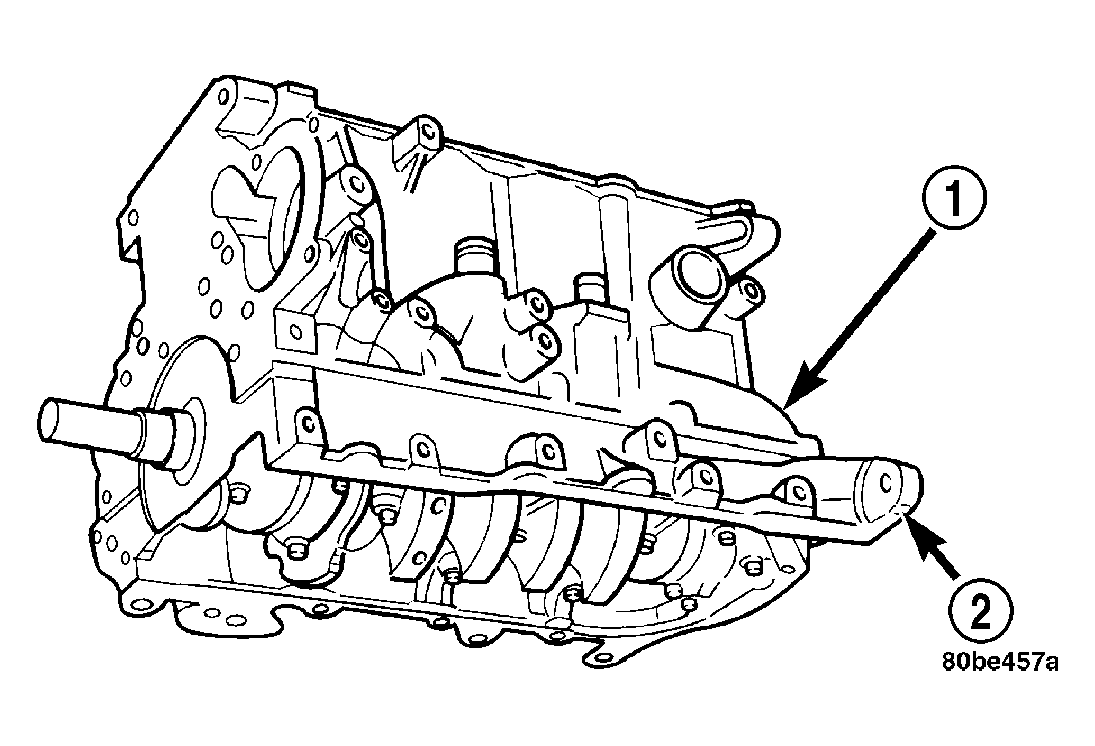

Fig 1: Cylinder Block and Bed plate

Courtesy of DAIMLERCHRYSLER CORP.

1 - CYLINDER BLOCK

2 - BEDPLATE
