Sensor - Sun: Removal

WARNING: This page is about a different car, the 2005 Dodge Magnum and 2005 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: On vehicles equipped with airbags, disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in an accidental airbag deployment and possible personal injury or death.

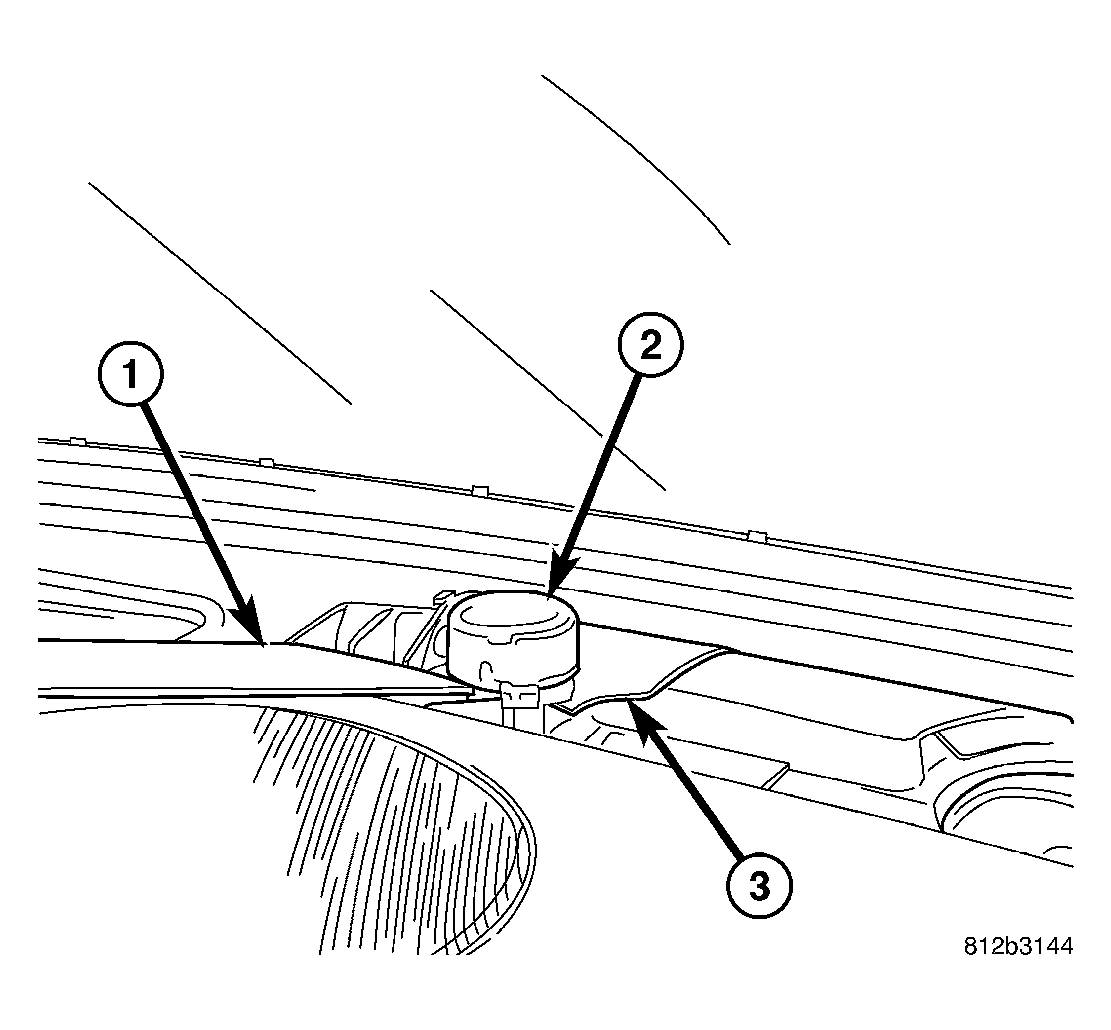

Fig 1: Sun Sensor - Removal
GC0013941Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the defroster grille (Refer to BODY/INSTRUMENT PANEL/DEFROSTER GRILLE - REMOVAL) .
  3. Using a trim stick or another suitable wide flat-blade tool (1), gently pry between both sides of the sun sensor assembly (2) and the instrument panel (3) to release the snap clip retainers that secure the sun sensor.

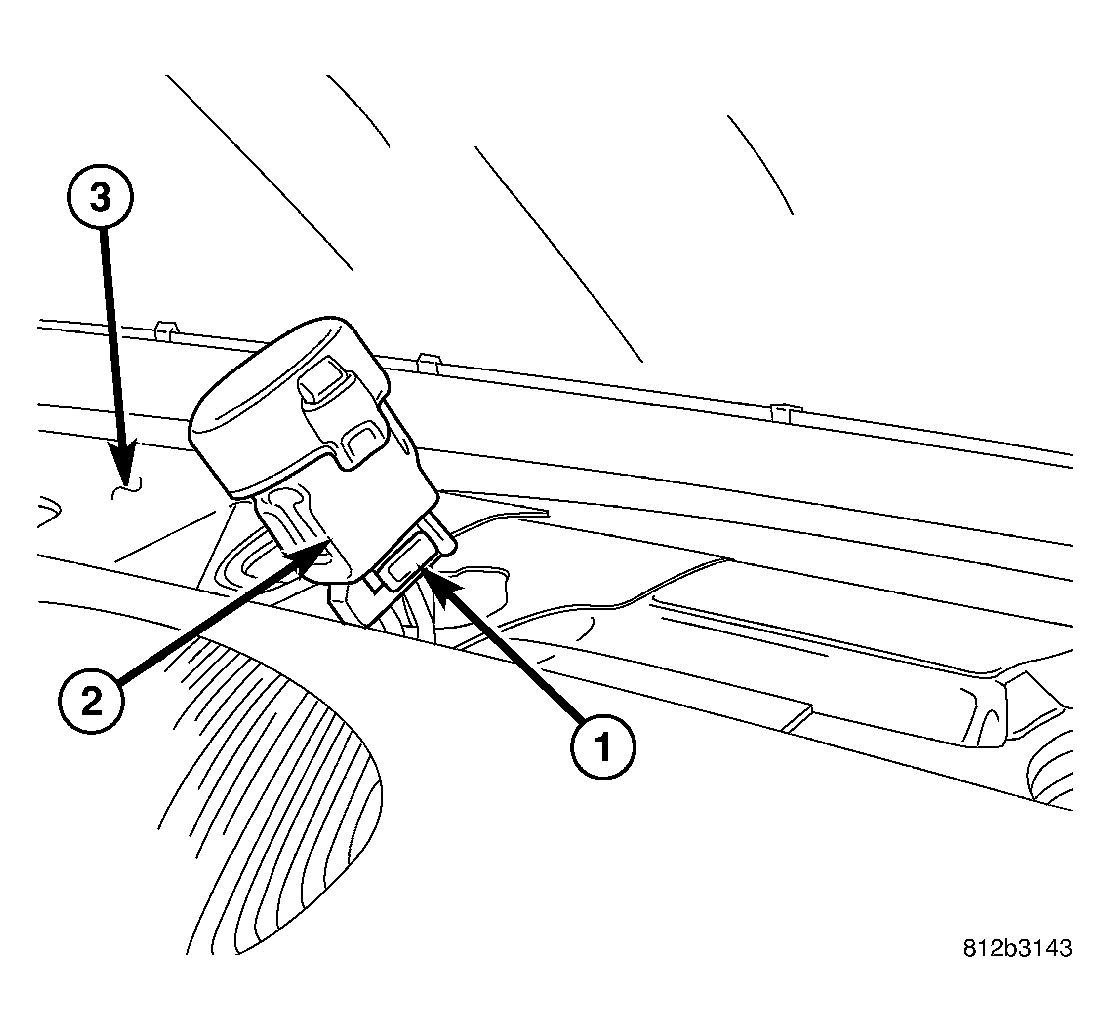

    Fig 2: Sun Sensor - Wire Connector
    GC0013942Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the wire harness connector (1) from the sun sensor assembly (2).
  5. Remove the sun sensor assembly from the instrument panel (3).
