Module - Power - Blower Motor: Installation

WARNING: This page is about a different car, the 2005 Dodge Magnum and 2005 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

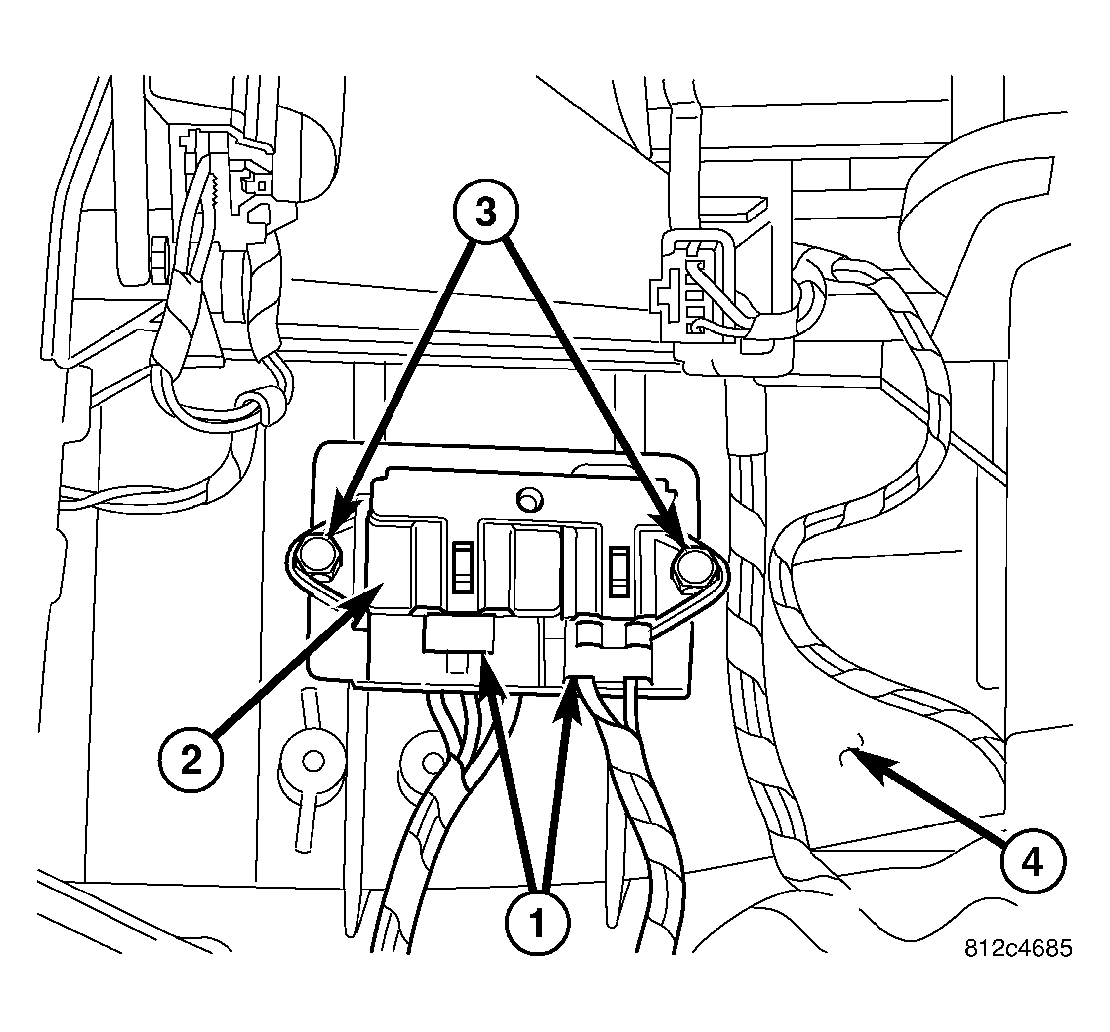

Fig 1: MODULE - POWER - BLOWER MOTOR
GC0013933Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the blower motor power module (2) into the HVAC housing (4).
  2. Install the two screws (3) that secure the blower motor power module to the HVAC housing. Tighten the screws to 2 N.m (17 in. lbs.).
  3. Connect the two wire harness connectors (1) to the blower motor power module.
  4. Install the glove box into the instrument panel (Refer to BODY/INSTRUMENT PANEL/GLOVE BOX - INSTALLATION) .
  5. Reconnect the negative battery cable.
