Control - A/C Heater: Installation

WARNING: This page is about a different car, the 2005 Dodge Magnum and 2005 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

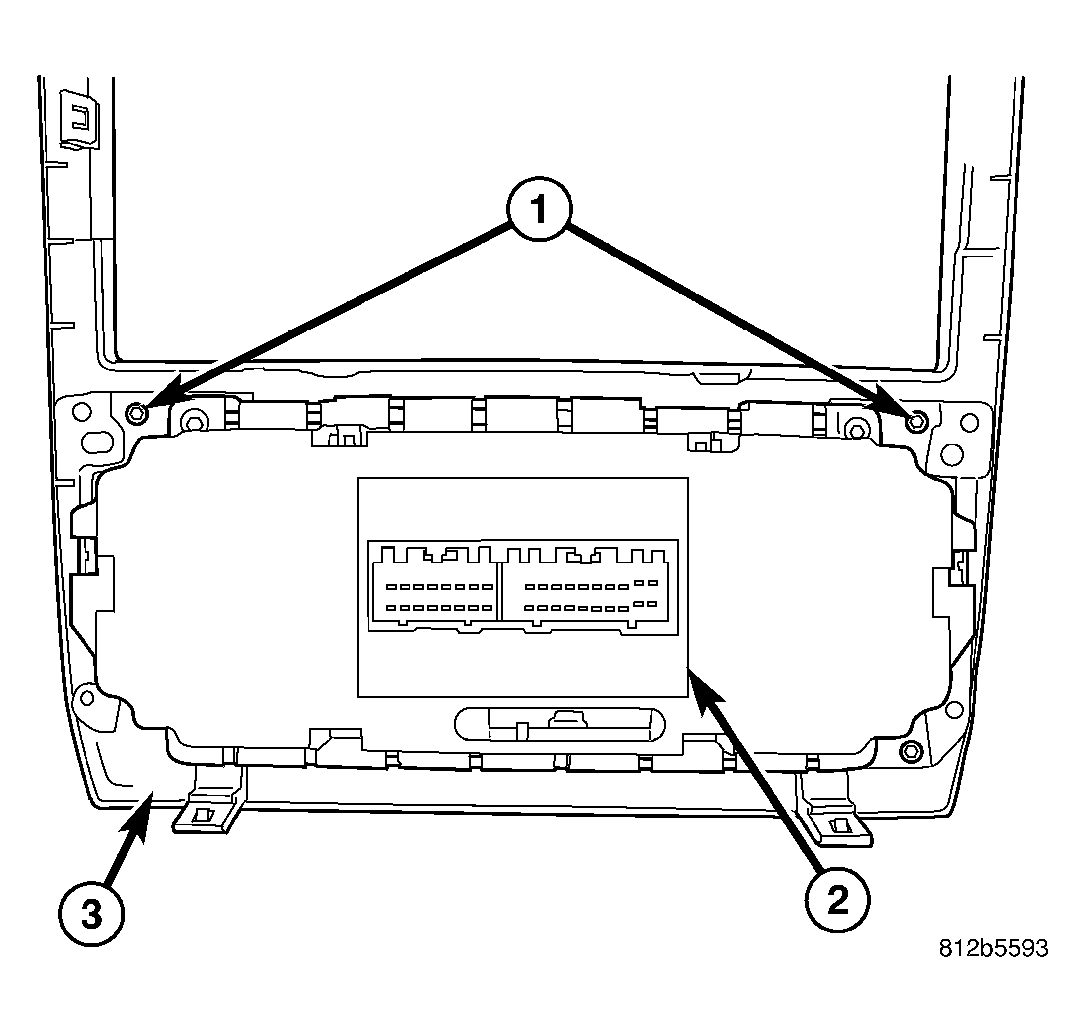

Fig 1: CONTROL - A/C HEATER
GC0013932Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the A/C-heater control (2) into the instrument panel center bezel (3).
  2. Install the four screws (1) that secure the A/C-heater control to the instrument panel center bezel. Tighten the screws to 2 N.m (17 in. lbs.).

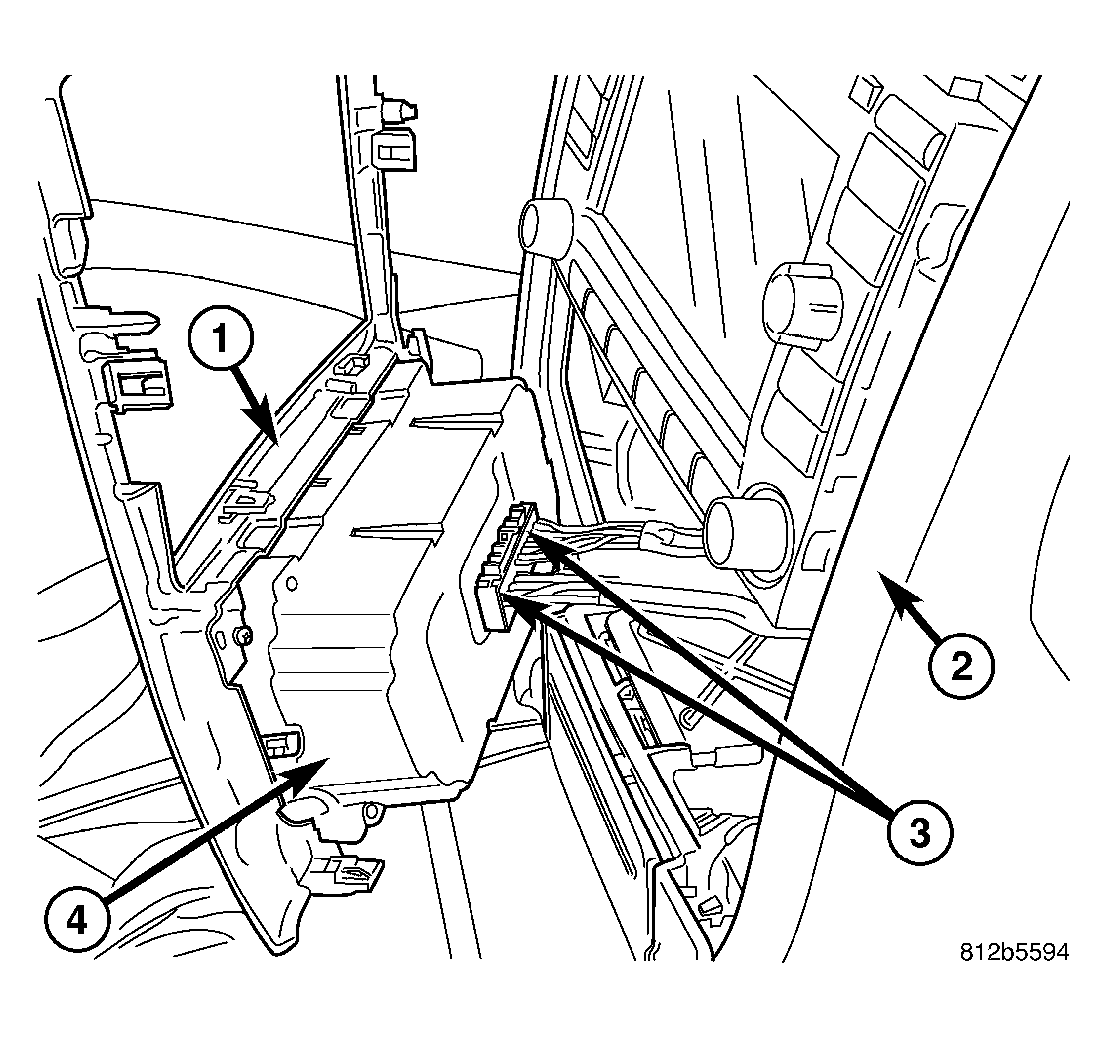

    Fig 2: Control - A/C Heater - Center Bezel
    GC0013469Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the wire harness connector(s) (3) to the A/C-heater control (4) and install the instrument panel center bezel (1) to the instrument panel (2) (Refer to BEZEL-CENTER ).
  4. Reconnect the negative battery cable.
