Switch-Window/Door Lock: Description
WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

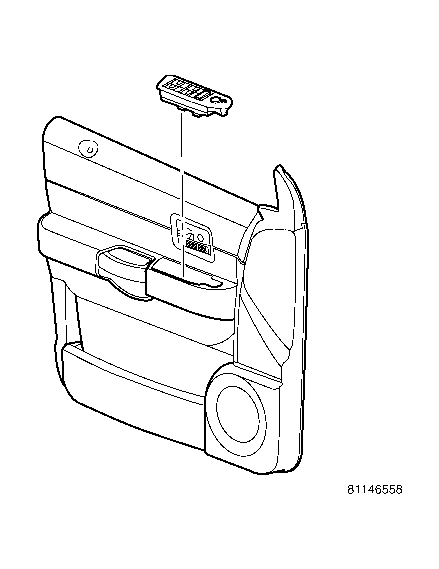

A window/lock switch located in each front door trim panel. The driver's side window/lock switch includes the following:
- Power Lock Switch - A two-way, momentary, resistor multiplexed switch to control the power lock system.
- Power Window Lockout Switch - A two-way, latching, push-button switch allows the vehicle operator to lock out the power window switches on each passenger door so that the passenger door power windows may be operated only from the master switches.
- Power Window Switches - A two-way, momentary power window switch for the driver side front door also has a second detent in the Down direction and internal circuitry to provide an Auto-Down feature for the driver side front door power window. In addition to the power window switch for its own door, the window/lock switch houses individual master switches for each passenger door power window.
The passenger side window/lock switch includes the following:
- Power Lock Switch - A two-way, momentary, resistor multiplexed switch to control the power lock system.
- Power Window Switch - A two-way, momentary power window switch for the passenger side front door.
