Sensor-Wheel Speed-Abs-Rear: Removal

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Remove the brake line mounting nut and remove the brake line from the sensor stud.
  3. Remove the mounting stud (2) from the sensor and shield. See Fig 1.

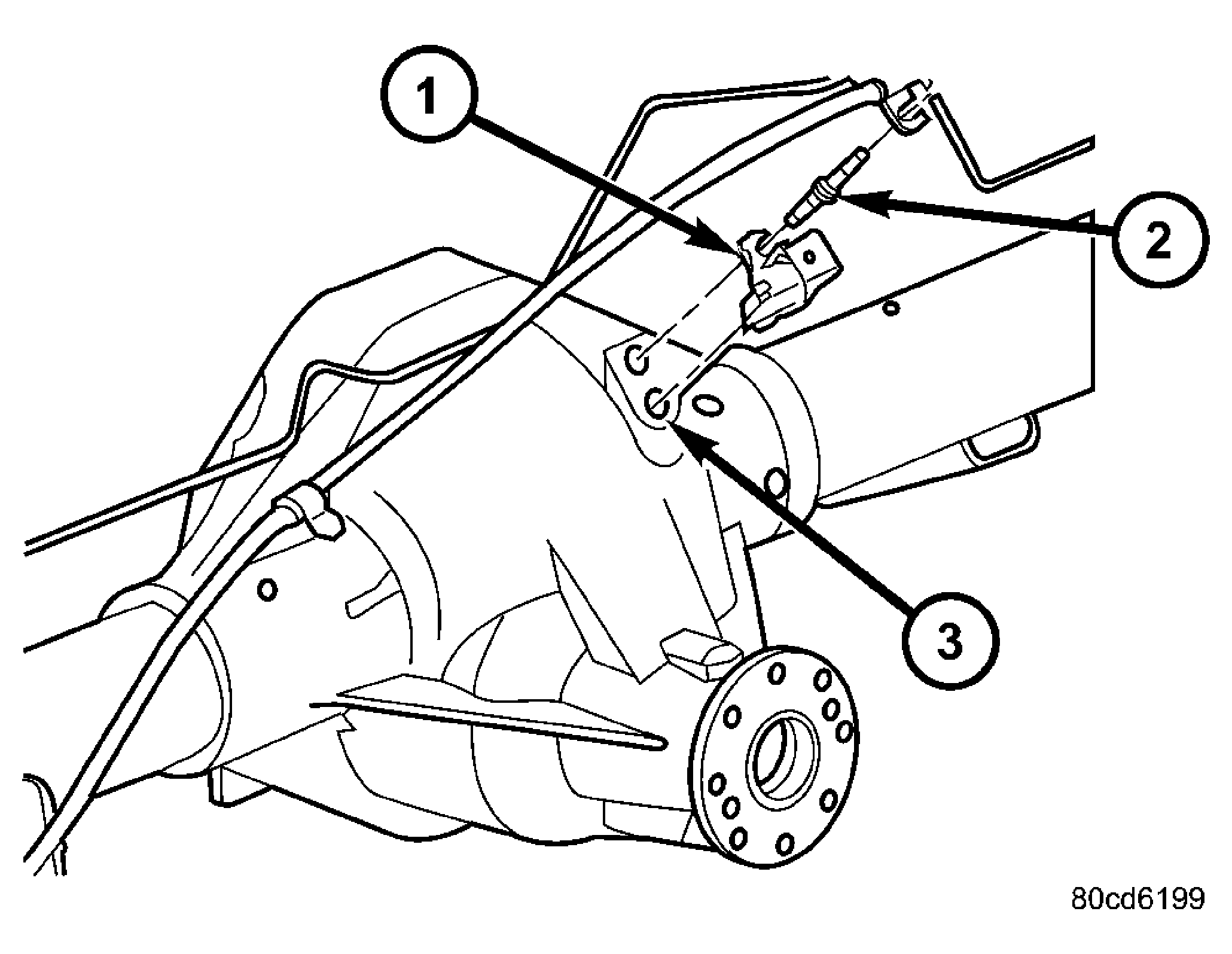

    Fig 1: Removing Rear Wheel Speed Sensor
    GC0006394Courtesy of DAIMLERCHRYSLER CORP.
    1 - WHEEL SPEED SENSOR
    2 - MOUNTING STUD
    3 - AXLE HOUSING
  4. Remove the sensor (1) and shield from the differential housing (3).
  5. Disconnect the sensor wire harness and remove the sensor (1).
